• Three phase bldc motor, external rotor
• High efficiency low noise
• Compact design, long-lasting operation
• 0-10vdc/PWM variable speed
• Electronic protection: over-current, over-load, inverse power connection, etc.
• 12VDC/24VDC optional input
N | Model | Input Voltage | Rated Output (W) | Rated Speed (RPM) | Variable Speed (RPM) | Rated Torque (Nm) | Efficiency |

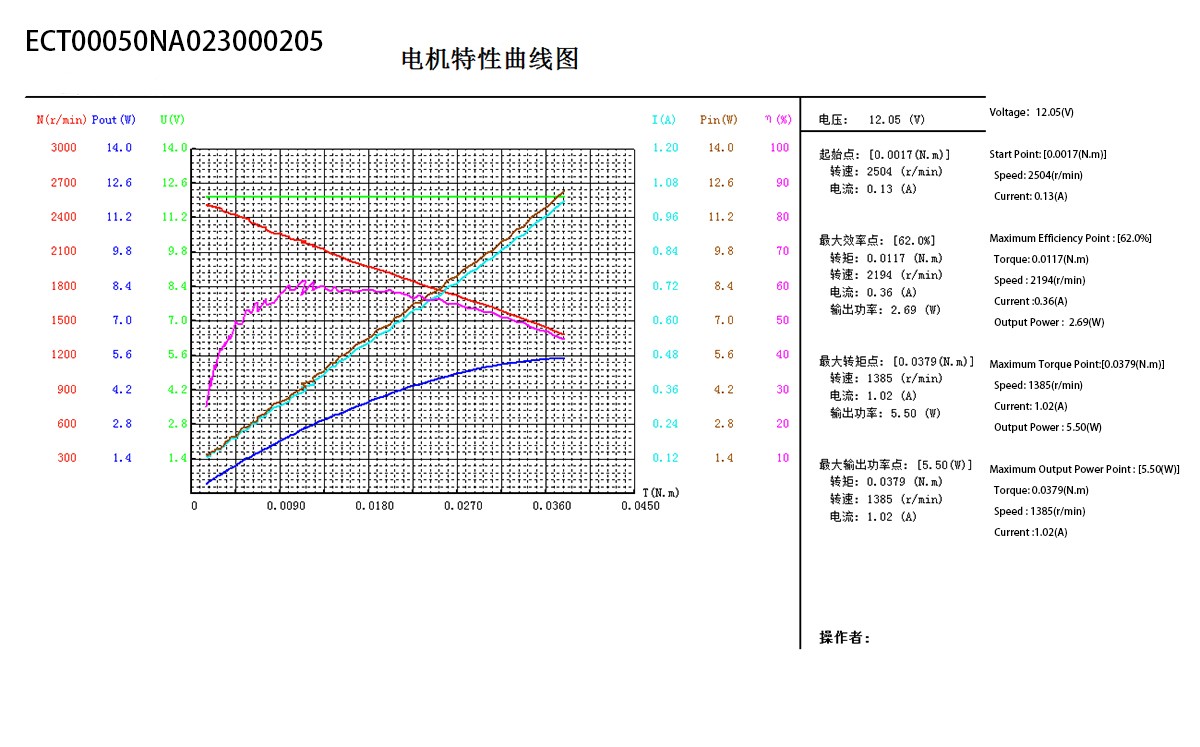

1 | ECT00050NA023000205 | 12VDC | 2 | 2300 | 0-2500 | 0.008 | 55% |

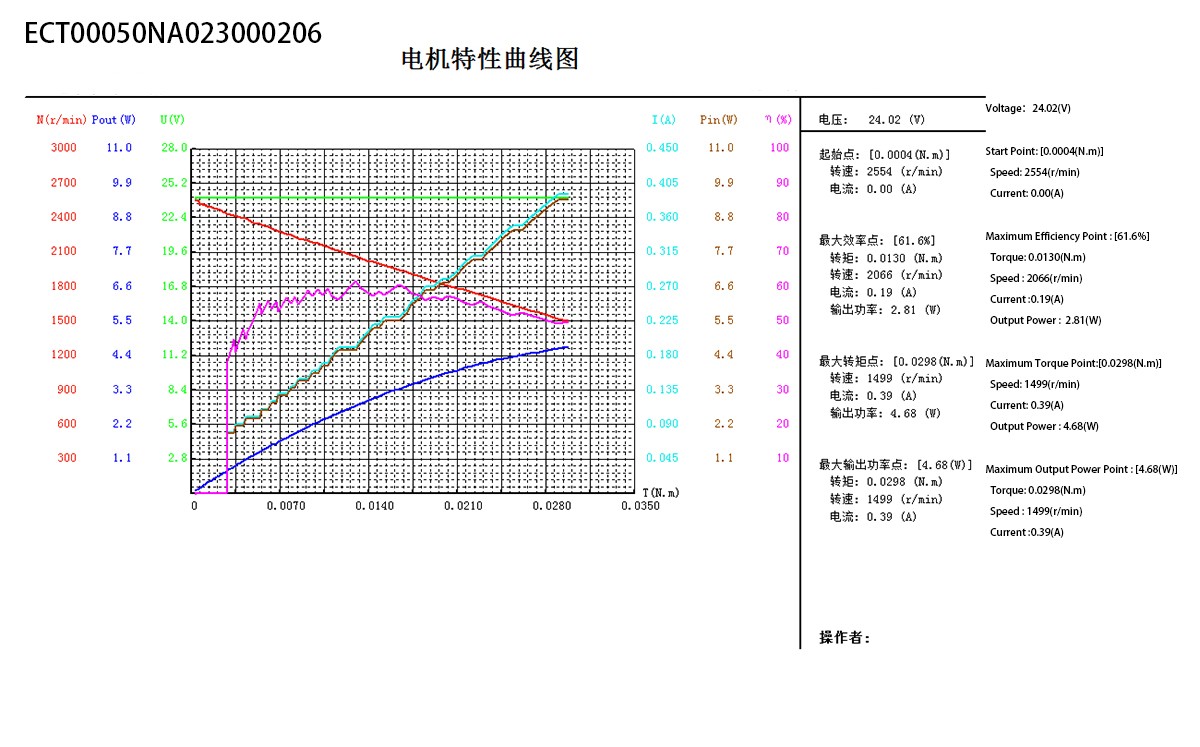

2 | ECT00050NA023000206 | 24VDC | 2 | 2300 | 0-2500 | 0.008 | 55% |

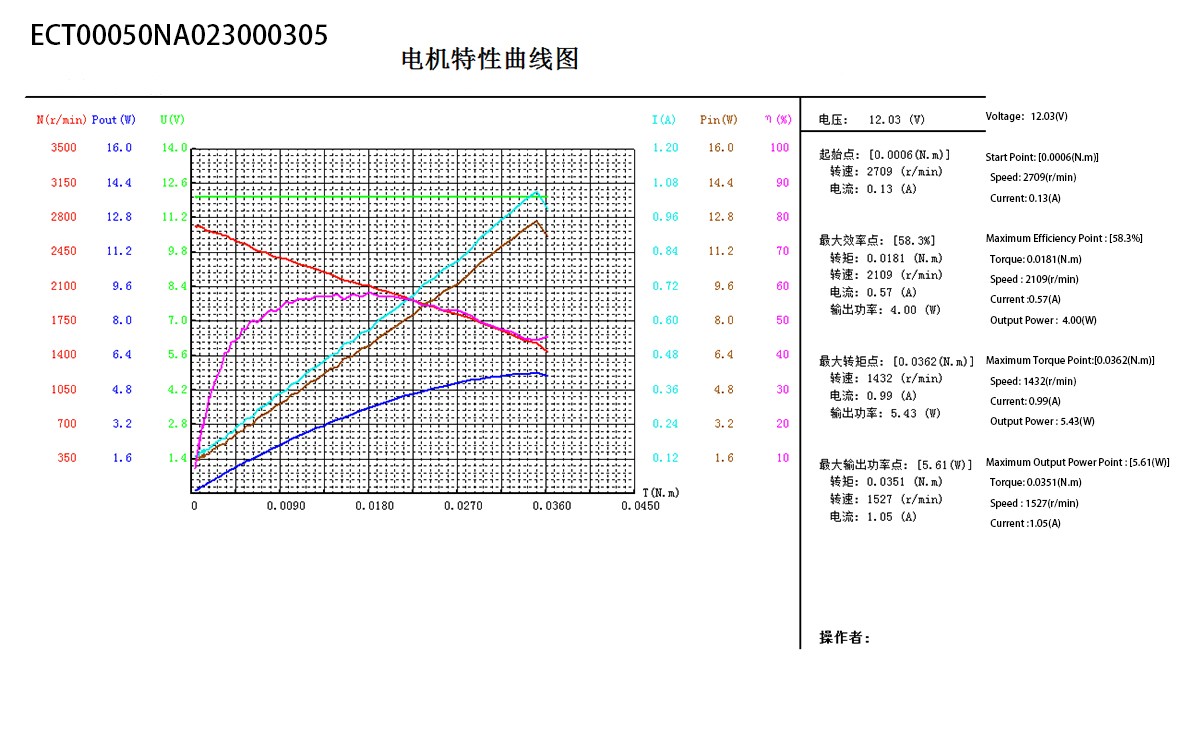

3 | ECT00050NA023000305 | 12VDC | 3 | 2300 | 0-2700 | 0.012 | 55% |

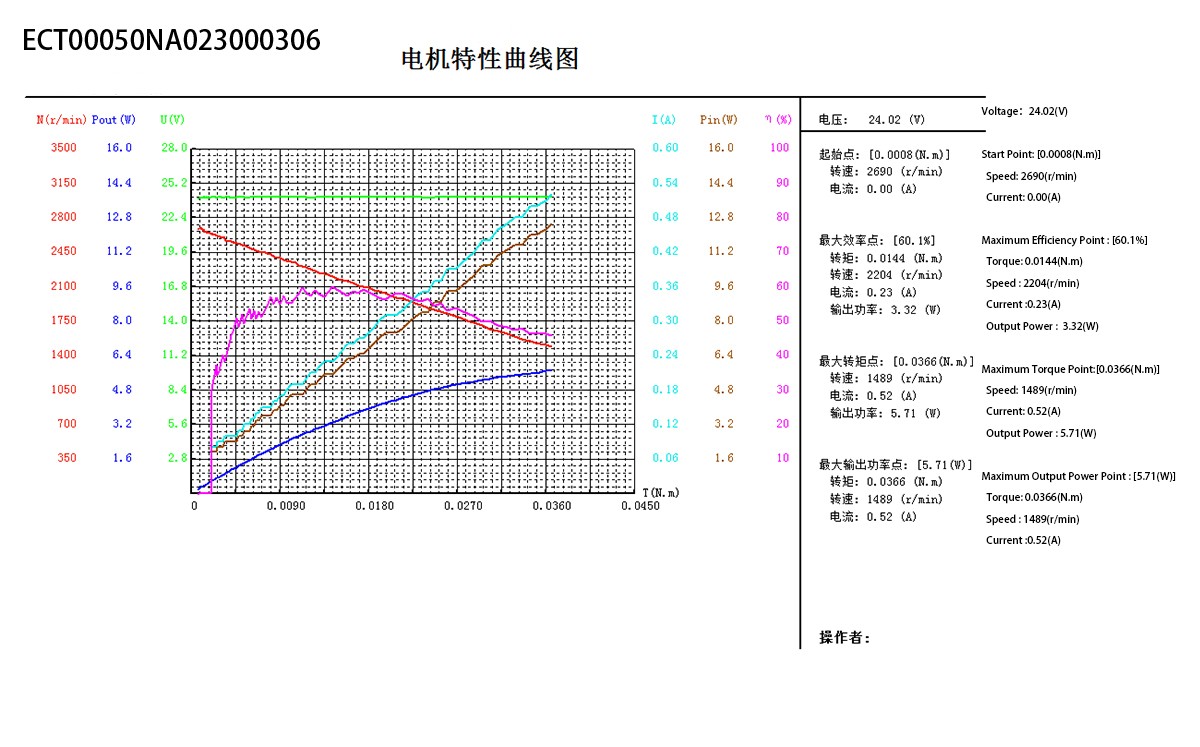

4 | ECT00050NA023000306 | 24VDC | 3 | 2300 | 0-2700 | 0.012 | 55% |

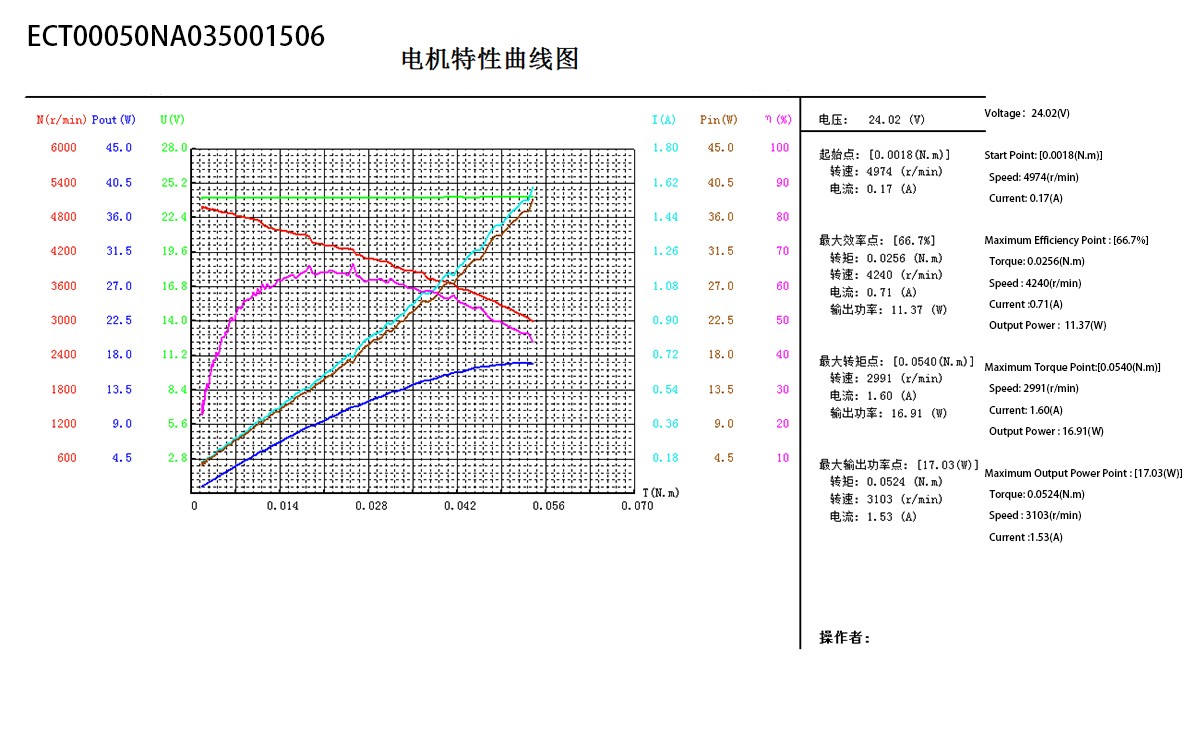

5 | ECT00050NA035001506 | 24VDC | 15 | 3500 | 0-5000 | 0.042 | 55% |
