• External rotor type, three phase, EC motor
• High efficiency low operational cost
• Maintenance-free, long-lasting operation, low noise
• Soft start
• Electronic protection: over-current over-load, blocking protection, wrong connection of power input
• 0-10vdc/PWM viable speed control
• Speed feedback, CW/CCW reversible
• Customized specifications available on request

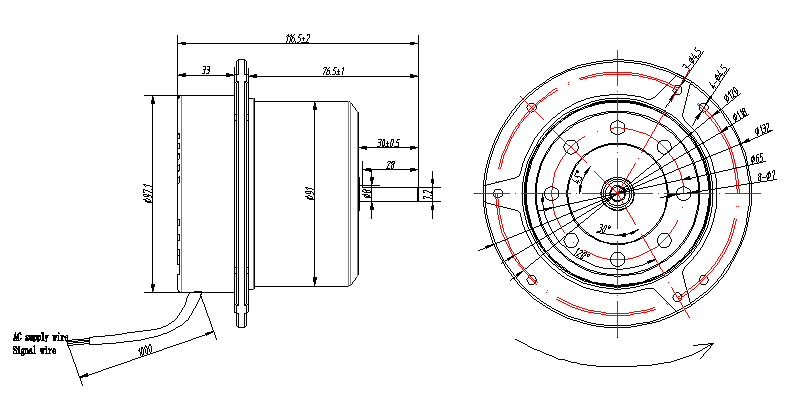

N | Model | Input Voltage | Rated Output (W) | Rated Speed (RPM) | Variable Speed (RPM) | Rated Torque (Nm) | Efficiency | L1 (mm) | L2 (mm) | L3 (mm) |

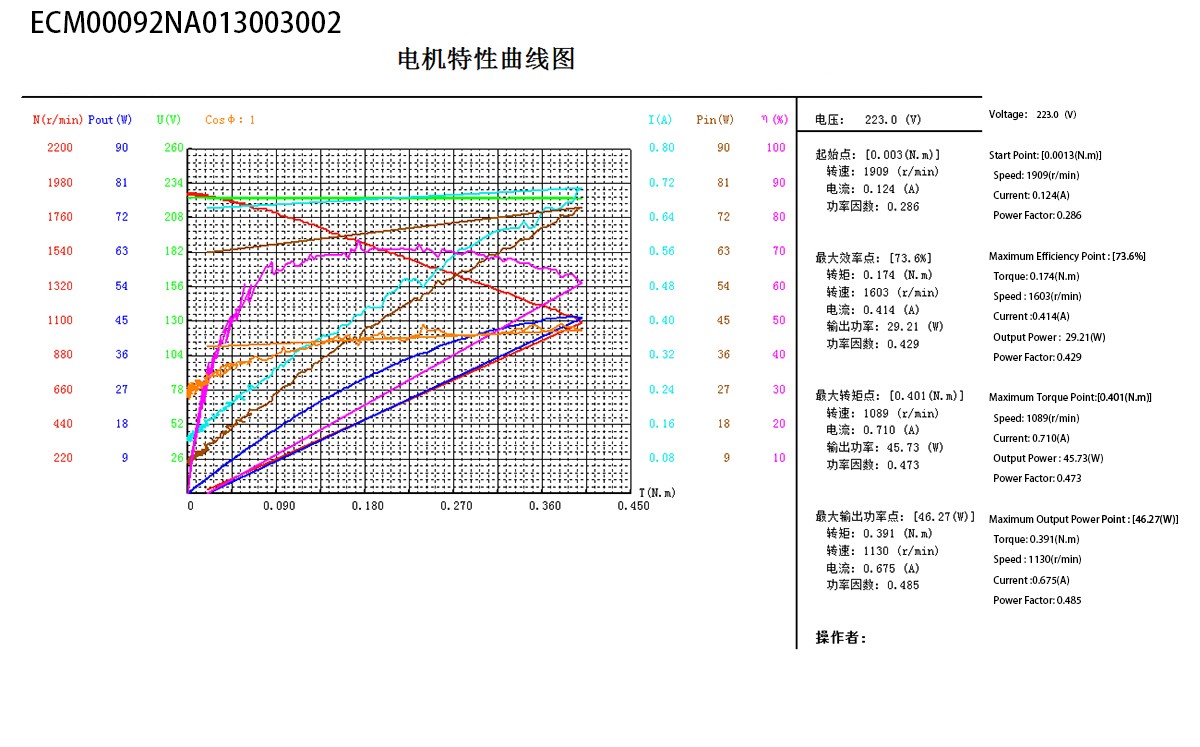

1 | ECM00092NA013003002 | 220VAC | 30 | 1300 | 0-1900 | 0.2 | 70% | 32 | 28 | 111.5 |

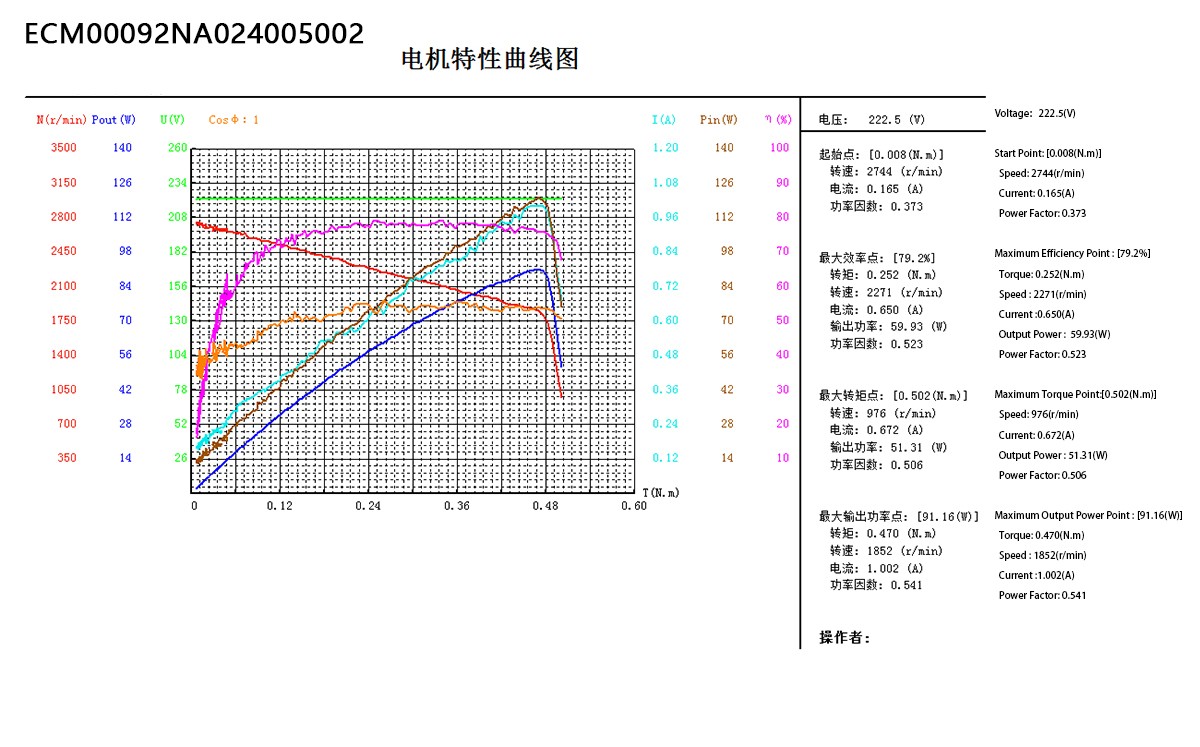

2 | ECM00092NA024005002 | 220VAC | 50 | 2400 | 0-2800 | 0.2 | 75% | 32 | 28 | 111.5 |

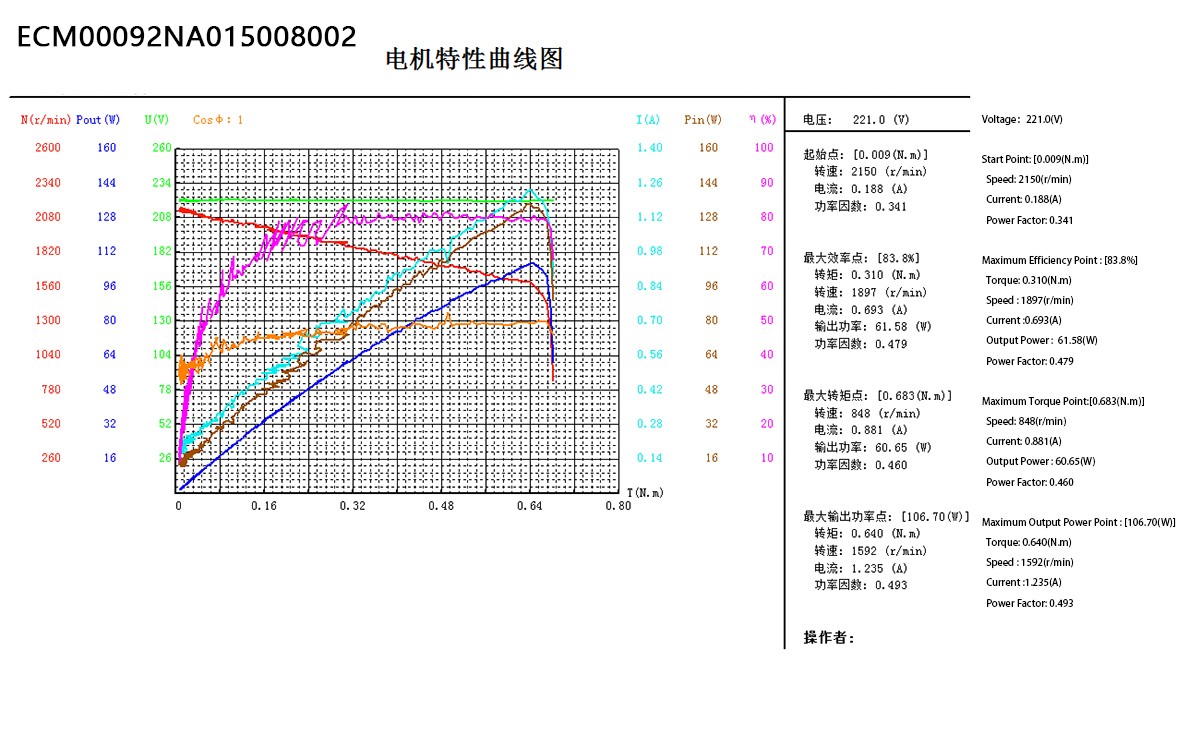

3 | ECM00092NA015008002 | 220VAC | 80 | 1500 | 0-2100 | 0.2 | 75% | 46 | 33 | 130.5 |
