• Three phase bldc motor, external rotor
• Separate driver, or w/o driver
• Maintenance-free, long-lasting operation
• Quiet operation, low noise
• Electronic protection: over-current, over-load, blocking protection for safety operation
• High efficiency low operational cost
• High quality with CE,CCCcertified.
• Typical application：FFU applications

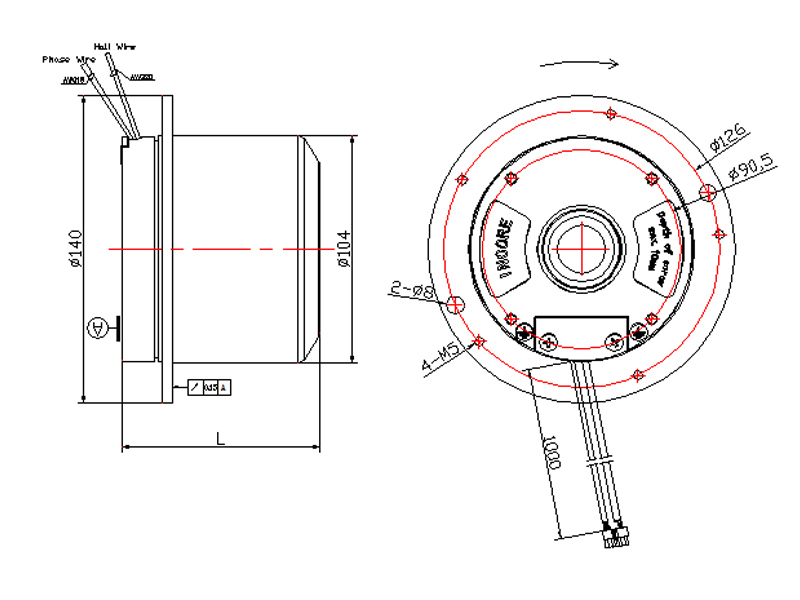

N | Model | Input Voltage (without controller) | Rated Output (W) | Rated Speed (RPM) | Rated Torque (Nm) | IP Class | Efficiency | L (mm) |

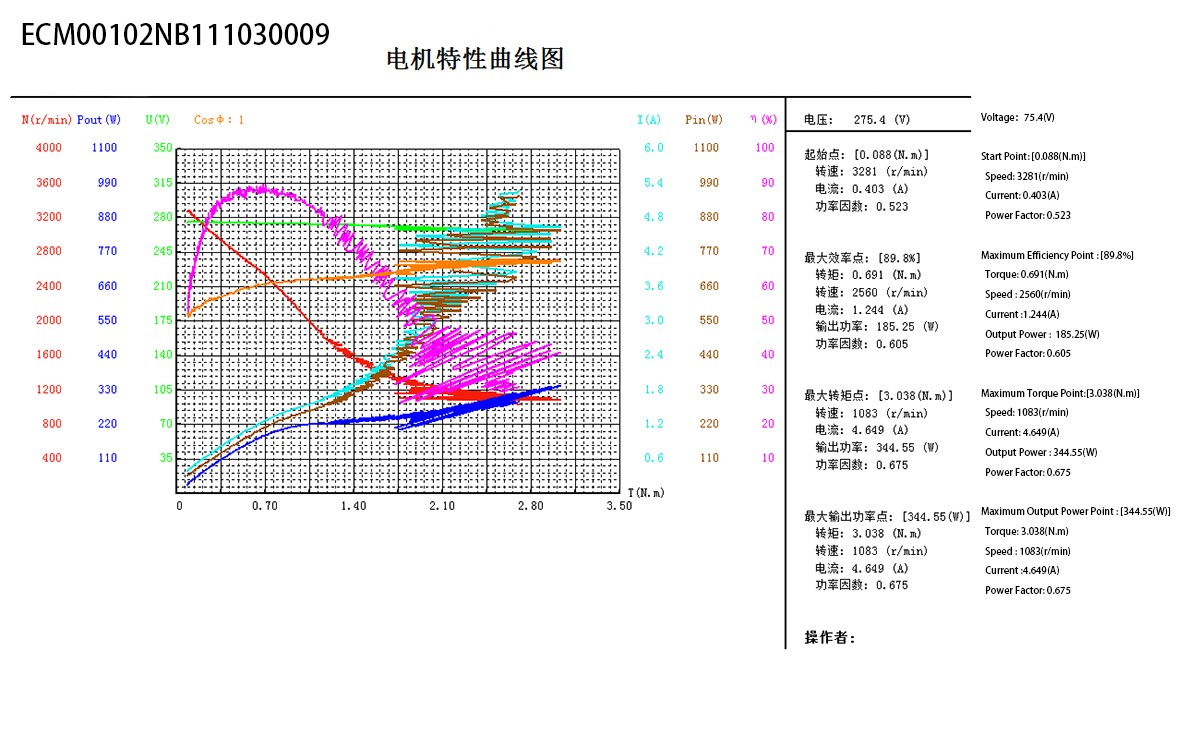

1 | ECM00102NB111030009 | 380VDC | 300 | 1100 | 2.6 | IP20 | 80% | 70.5 |

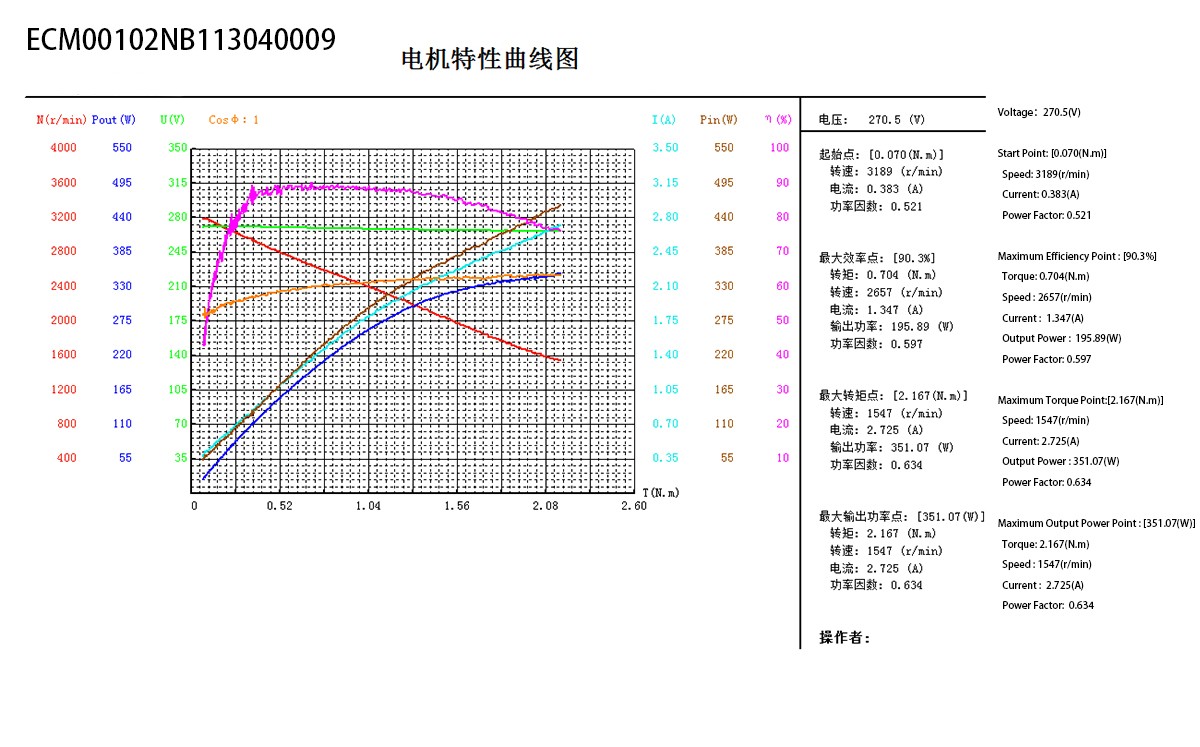

2 | ECM00102NB113040009 | 380VDC | 400 | 1300 | 3.0 | IP20 | 80% | 90.5 |
