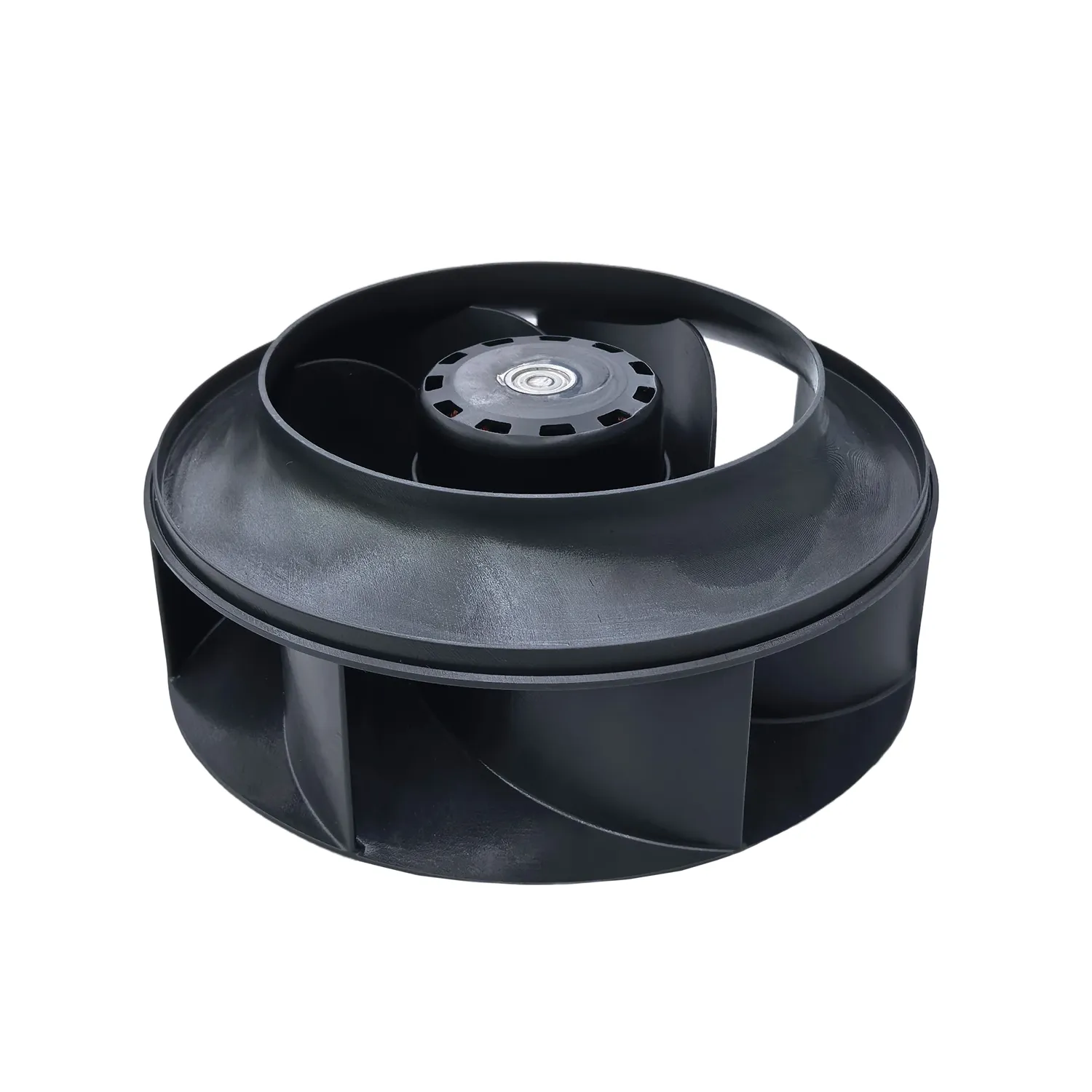

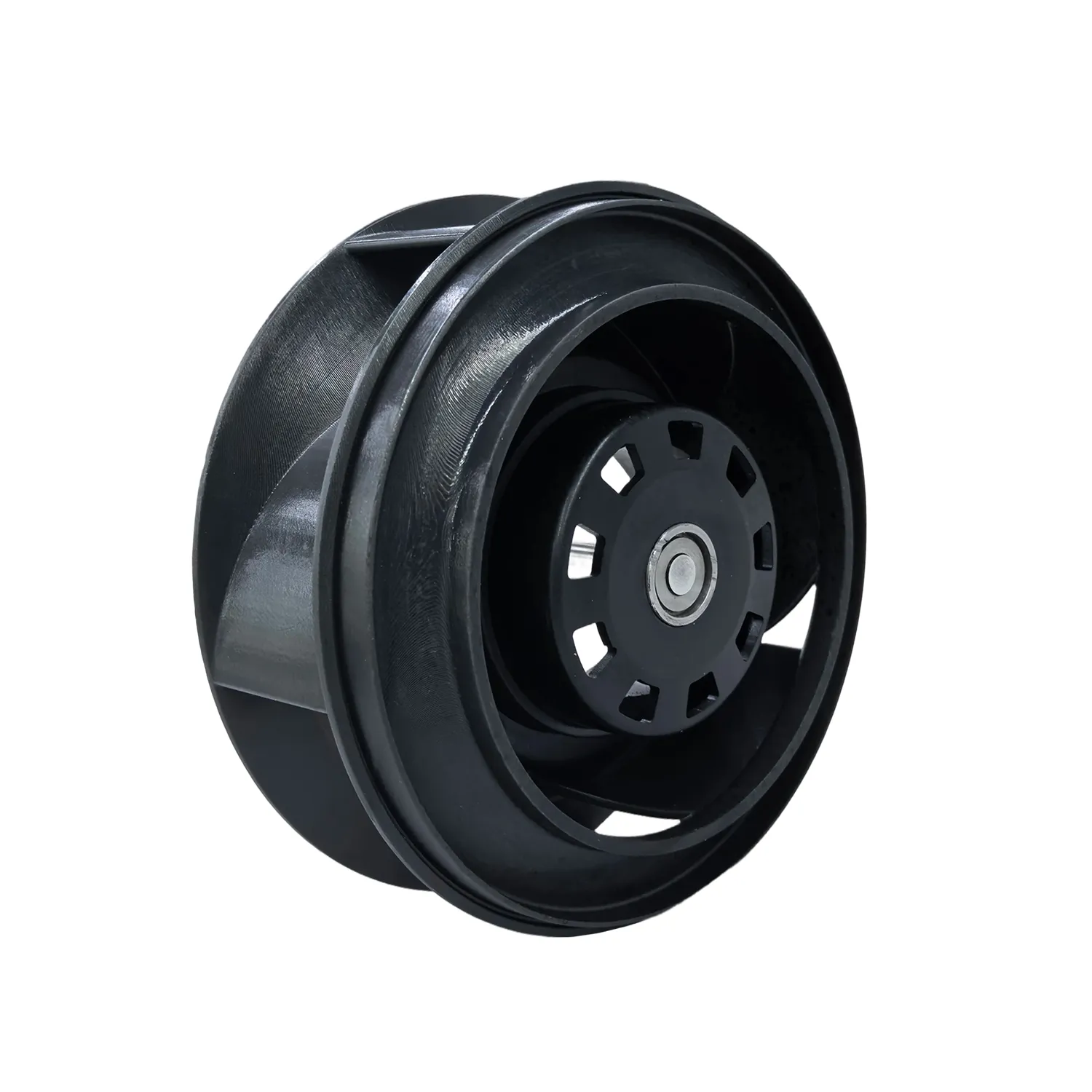

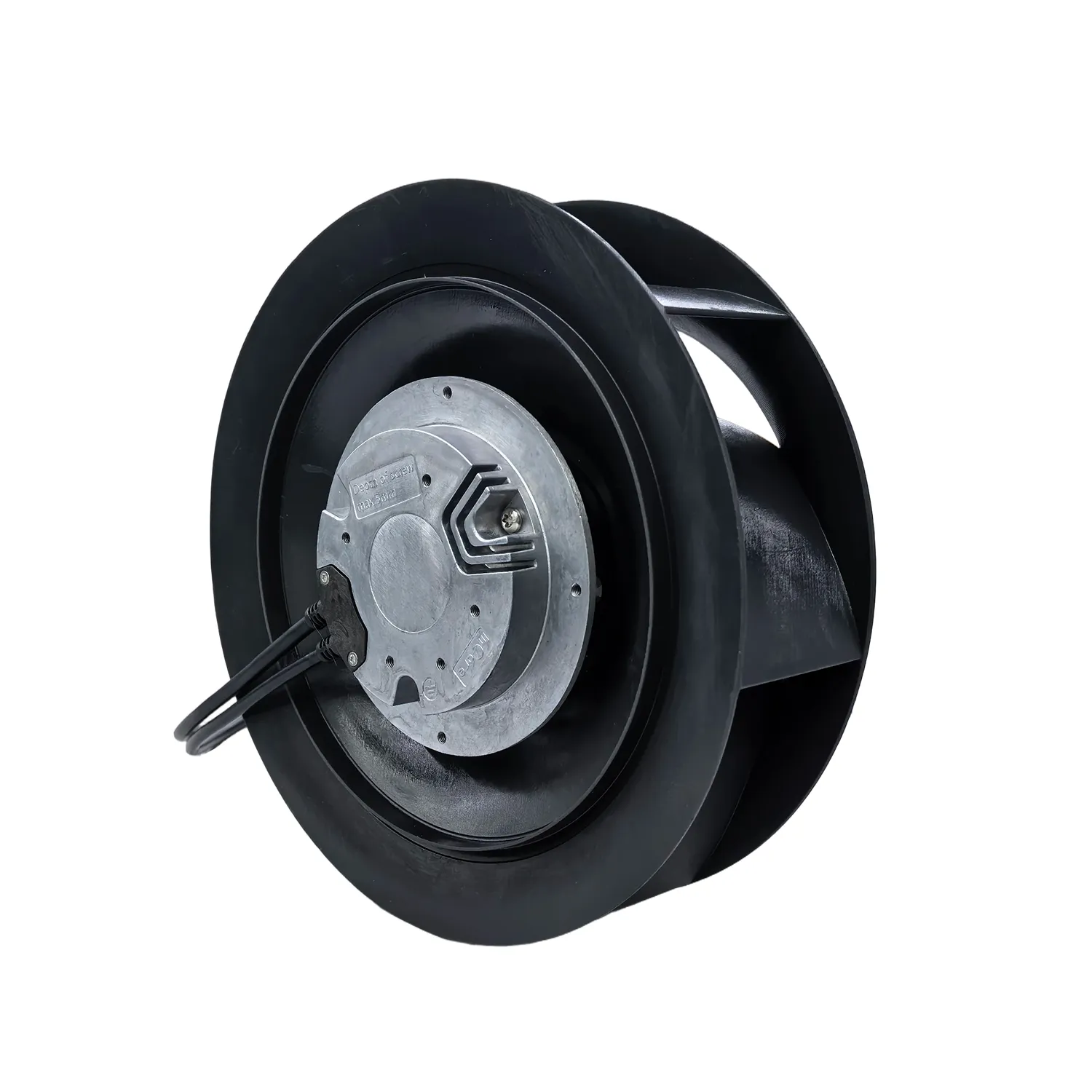

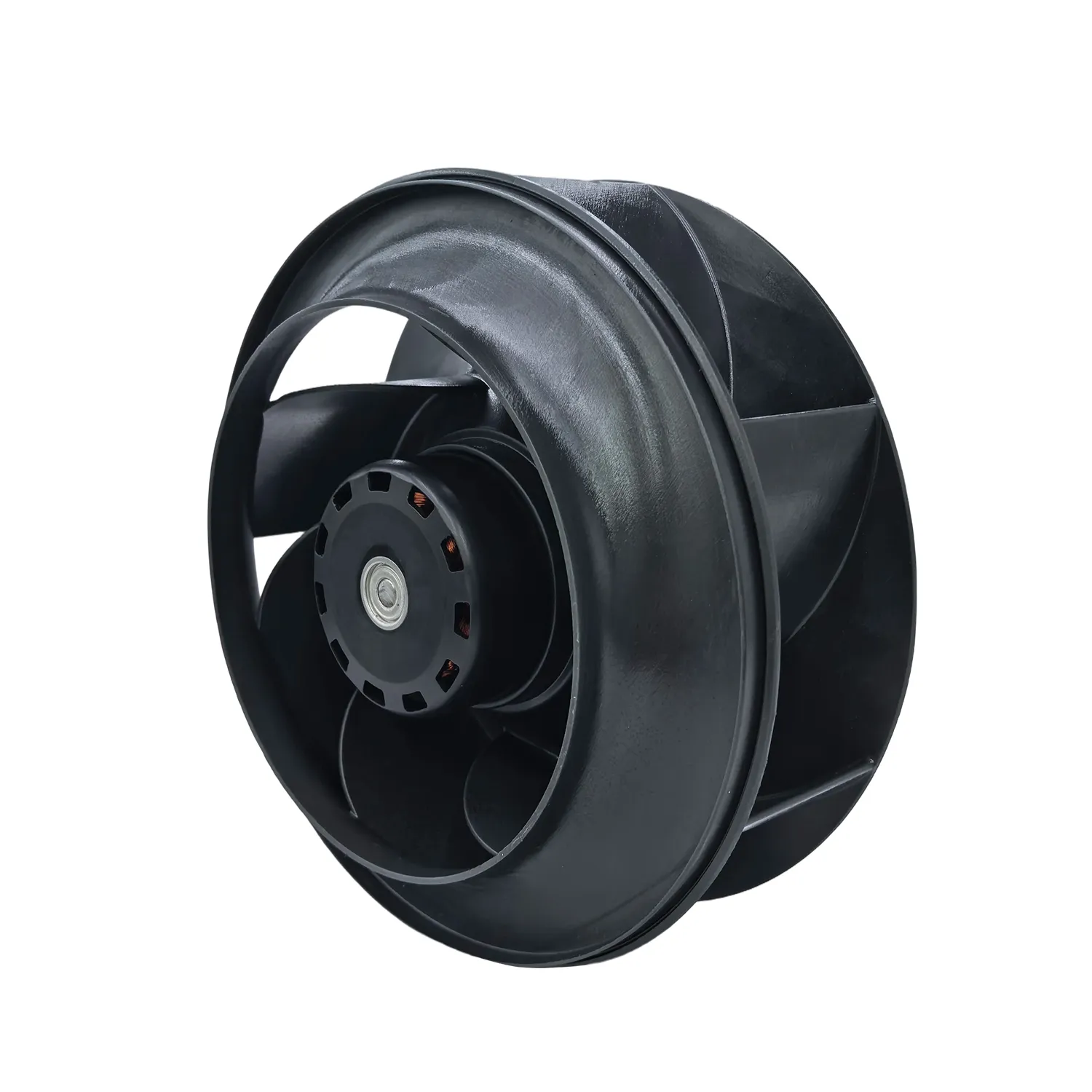

CIB133035M1AB057_EC Backward Curved Fans

EC Backward Curved Fans

CIB133035M1AB057

Get in touch with us

Let us contact you for more information, availability and pricing.

Tel: +86-186-0688 7970

Contact me

Benefits

Excellent performance in reverse starting

Capable for constant airflow without sensors

Electronic protection of temperature, stall, overcurrent, overvoltage, loss-of-sync, and phase-loss protection etc.

Typical Application

HVAC applications

Features

◎ EC external rotor motor with integrated controller for compact structure

◎ Speed control options of 0-10vdc, PWM and RS485 for wide range

◎ Soft start for stable running and low noise

◎ High efficiency particularly for low speed operation

◎ Intelligent control for custom settings according to application

specifications

Model	Input Voltage	Input Power (W)	Rated Speed (RPM)	Air Pressure (Pa)	Air Flow (m³/h)	Noise (dB)	Impeller Size
CIB133035M1AB057	230VDC	57	5000	580	435	65	φ133x35mm
CIB175036M2AB095	230VDC	95	4250	650	750	70	φ175x36mm
CIB190038M2AB095	230VDC	95	3600	650	820	65	φ190x38mm
CIB225058M2BB095	230VDC	95	3200	620	1200	65	φ225x58mm
CIB225058M3AB125	230VDC	125	2750	680	1200	65	φ225x58mm
CIB225058M4BB190	230VDC	190	3150	1100	1550	70	φ225x58mm
CIB225058M5AB230	230VDC	230	3600	910	1550	75	φ225x58mm

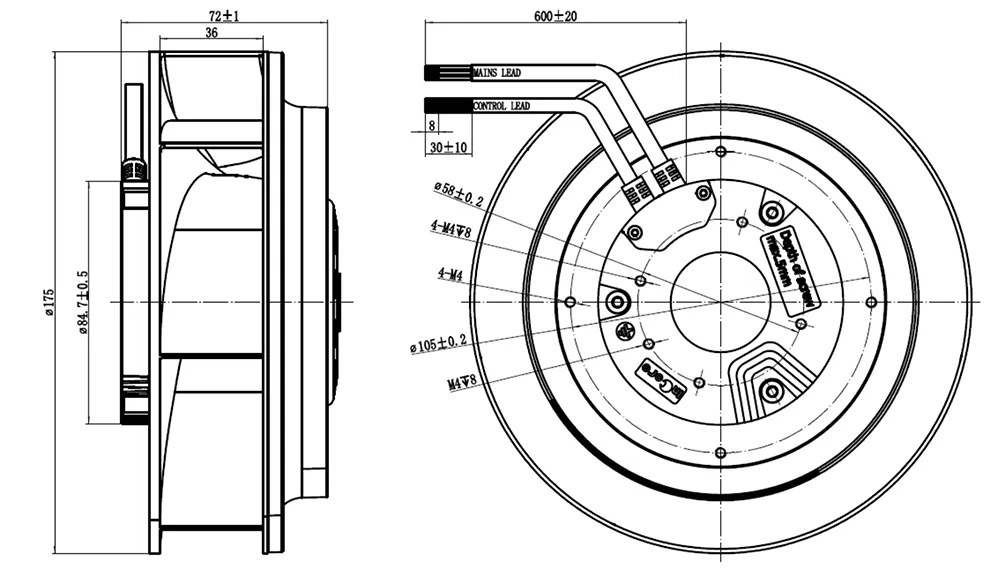

Dimensions
