High efficiency low nise
Compact design, long-lasting operation
Heat recover unit
Inline fan

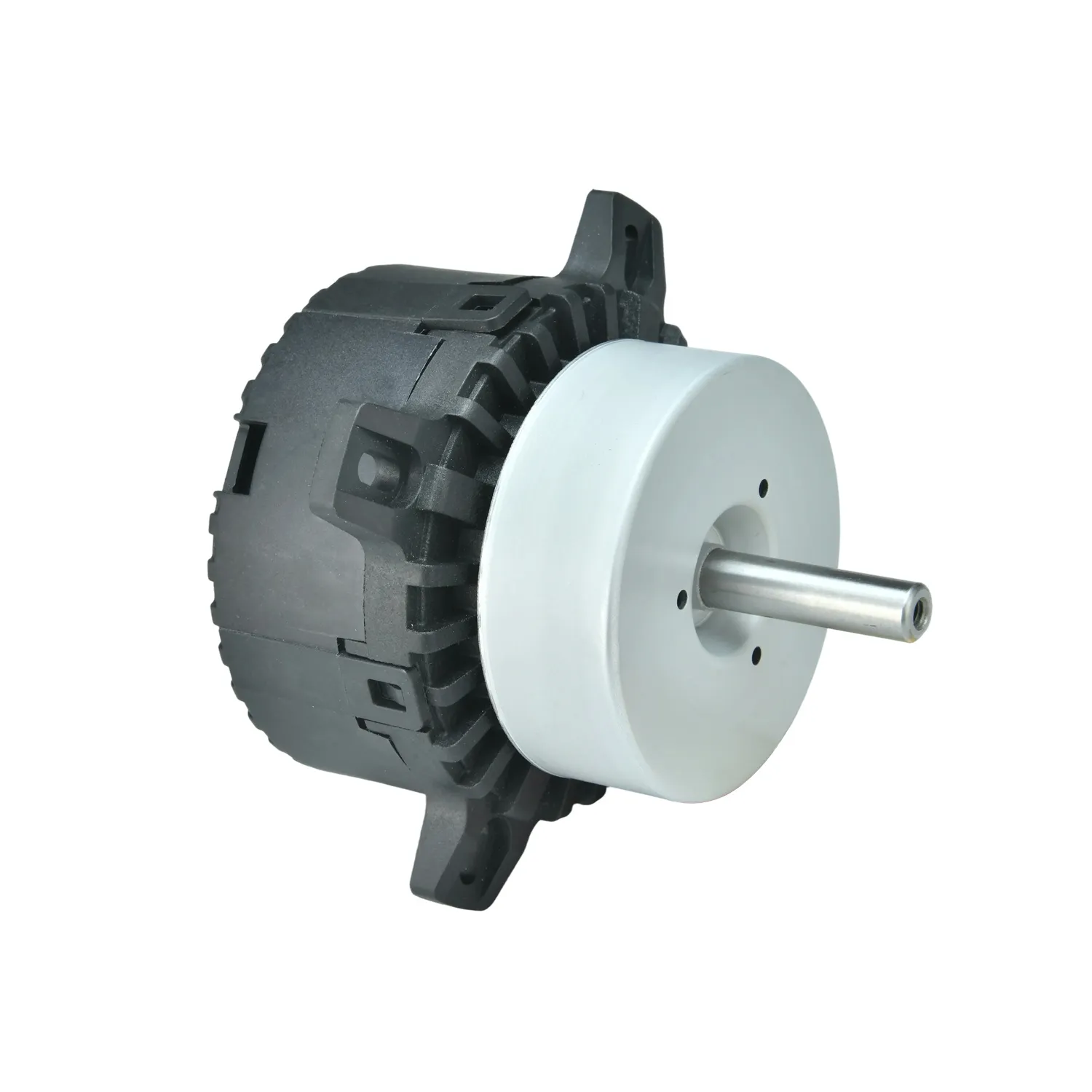

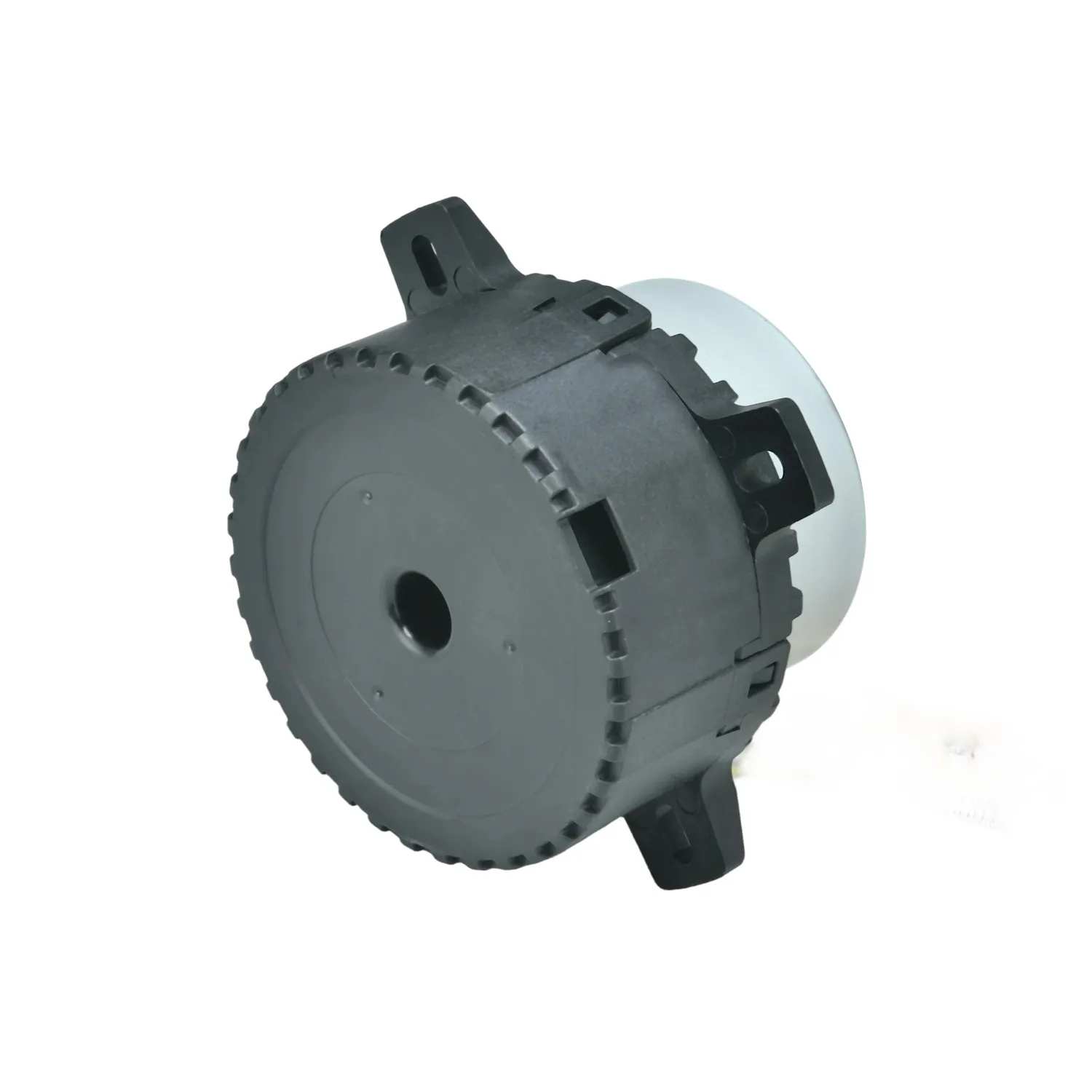

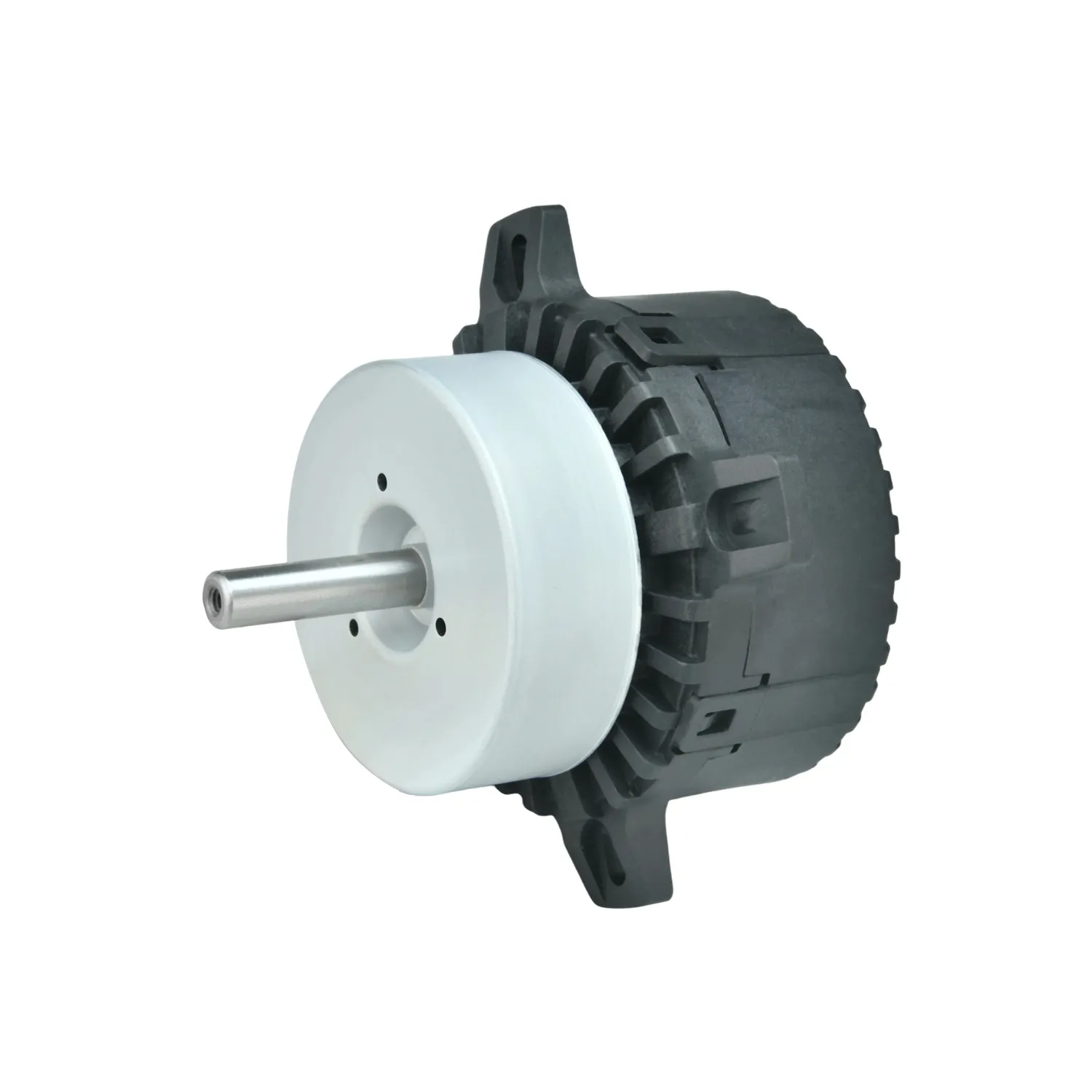

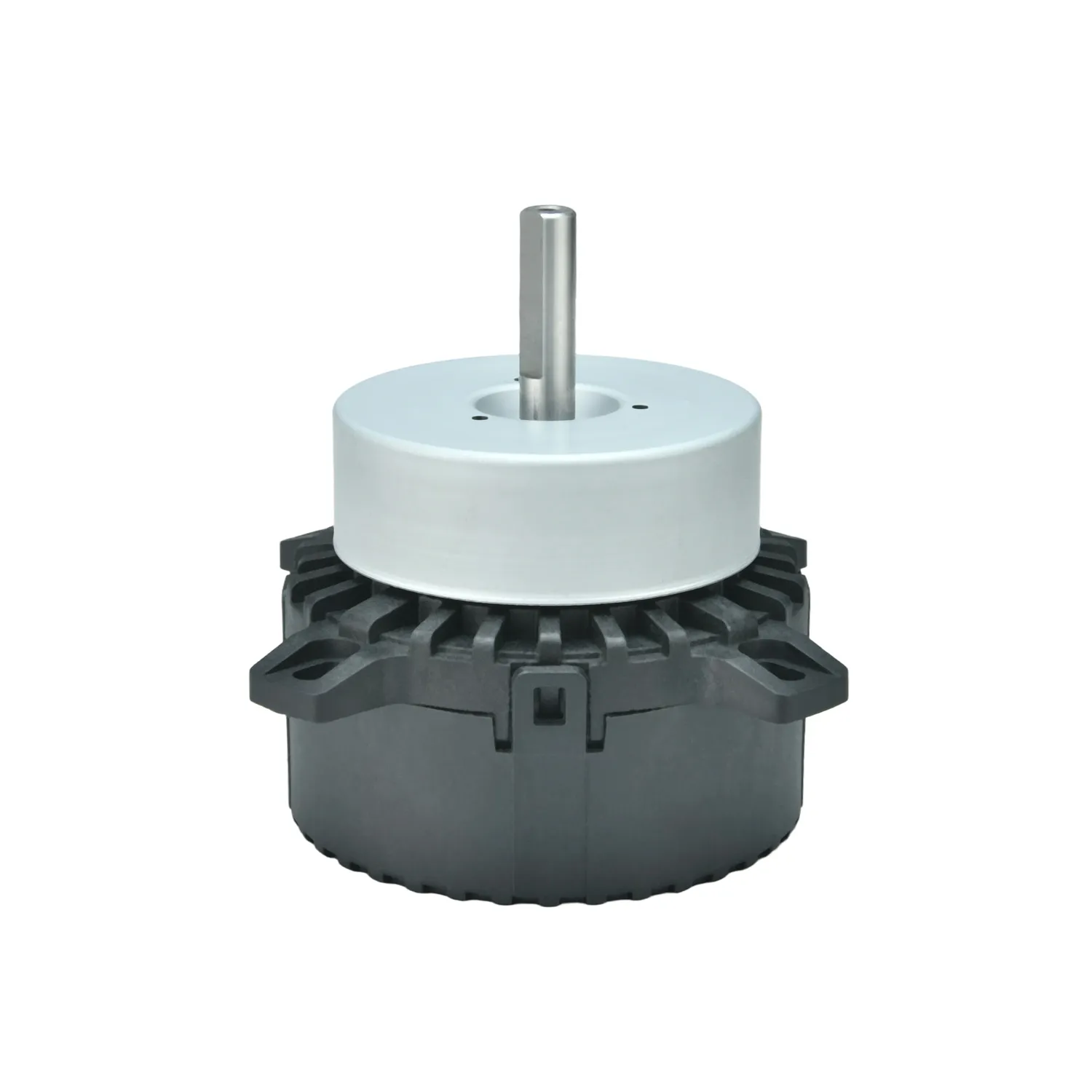

◎ BLDC motor with integrated controller
◎ 0-10vdc/PWM/2 or 3 speeds
◎ 12VDC/24VDC/230VAC input voltage available
◎ Constant speed or constant torque mode available
◎ Electronic protection: over-current, over-load, inverse power connection, etc.
◎ Optional feature: Tacho, reversible rotation direction, custom shaft feature on request.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Rated Torque(mNm) |
|---|---|---|---|---|

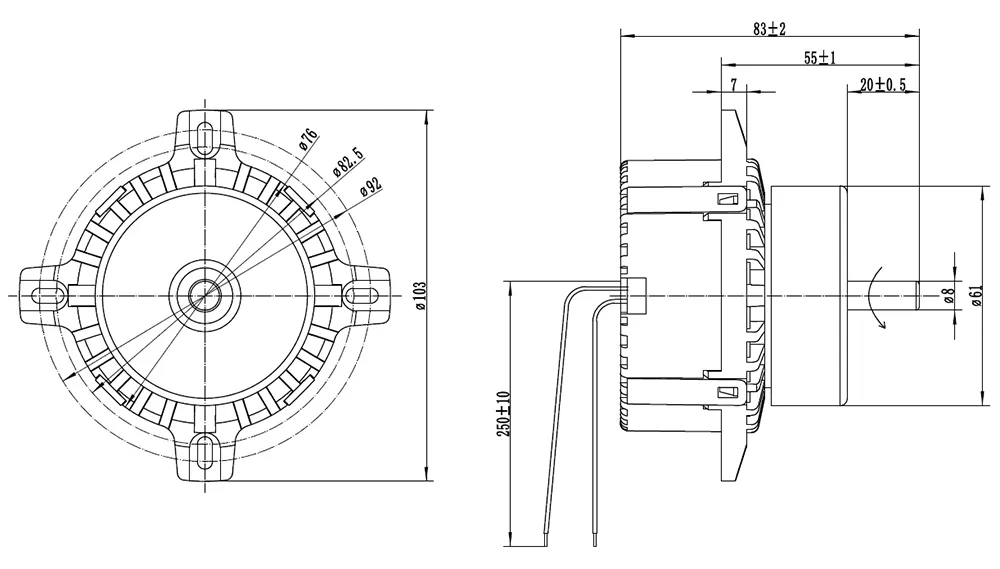

| ECM00061NA025000703 | 230 VAC | 7 | 2500 | 26.7 |
| ECM00061NA015001003 | 230 VAC | 10 | 1500 | 63.7 |
| ECM00061NA015002003 | 230 VAC | 20 | 1500 | 127.3 |
| ECM00061NA012002403 | 230 VAC | 24 | 1200 | 190 |
