High efficiency low nise
Compact design, long-lasting operation
Bathroom fan
Kitchen fan

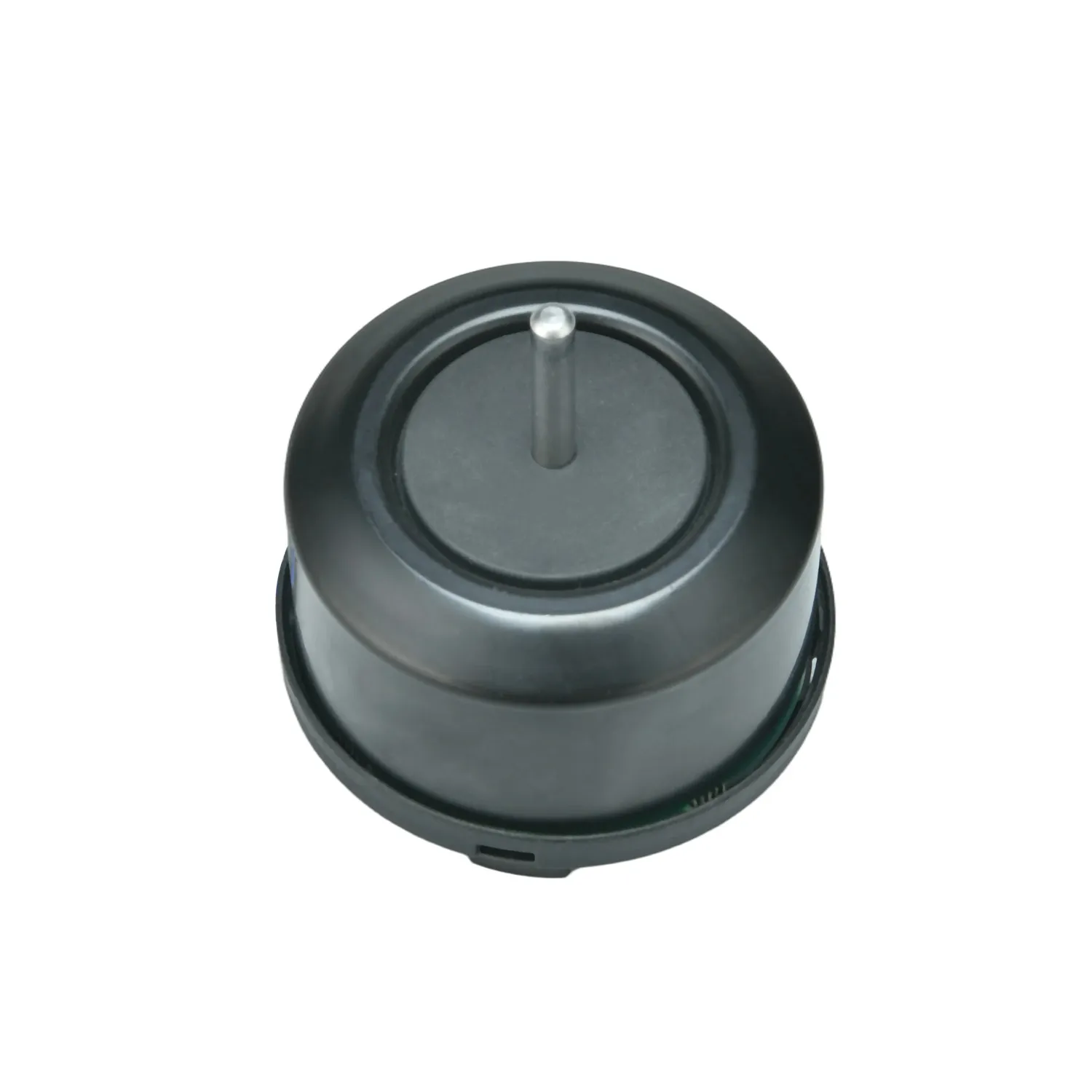

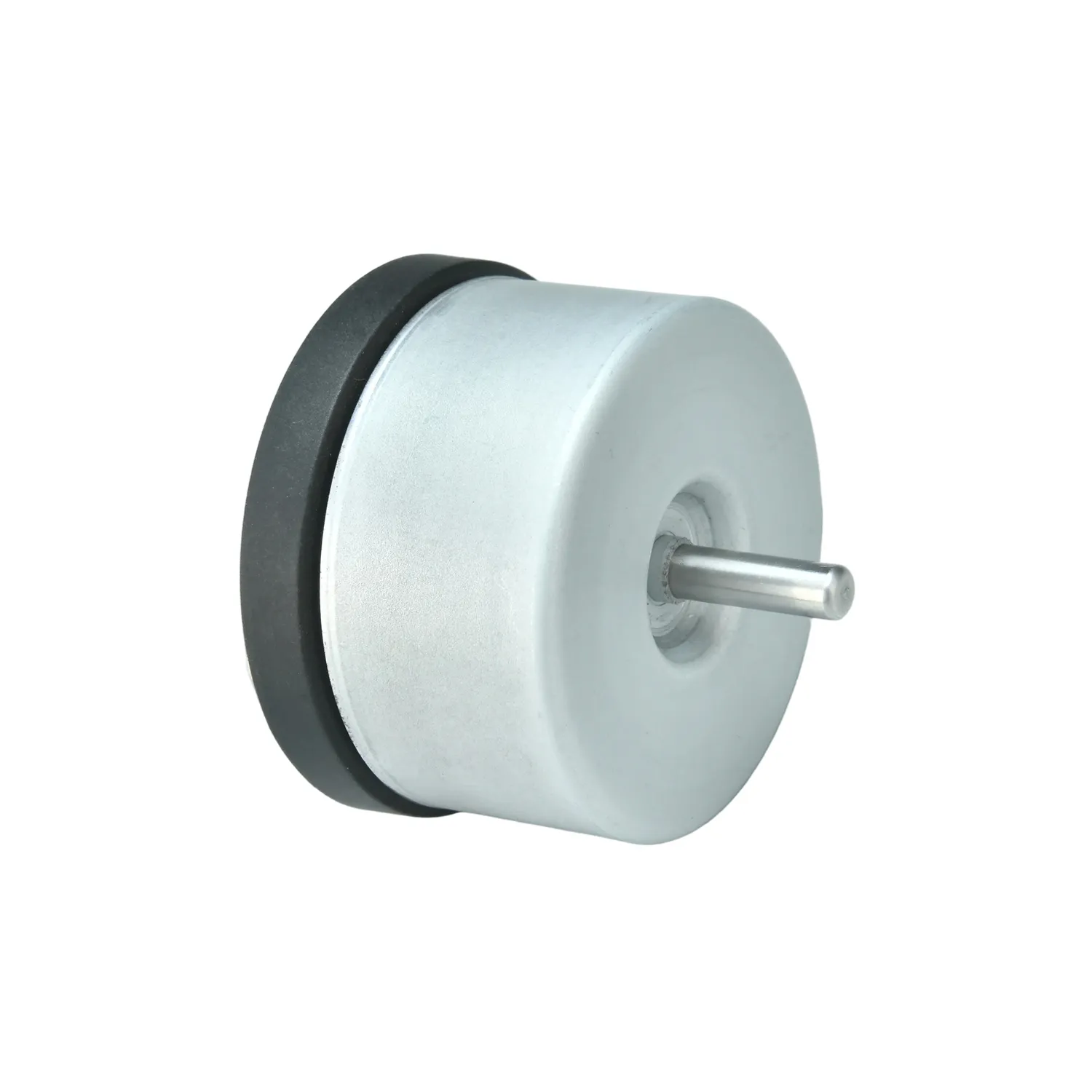

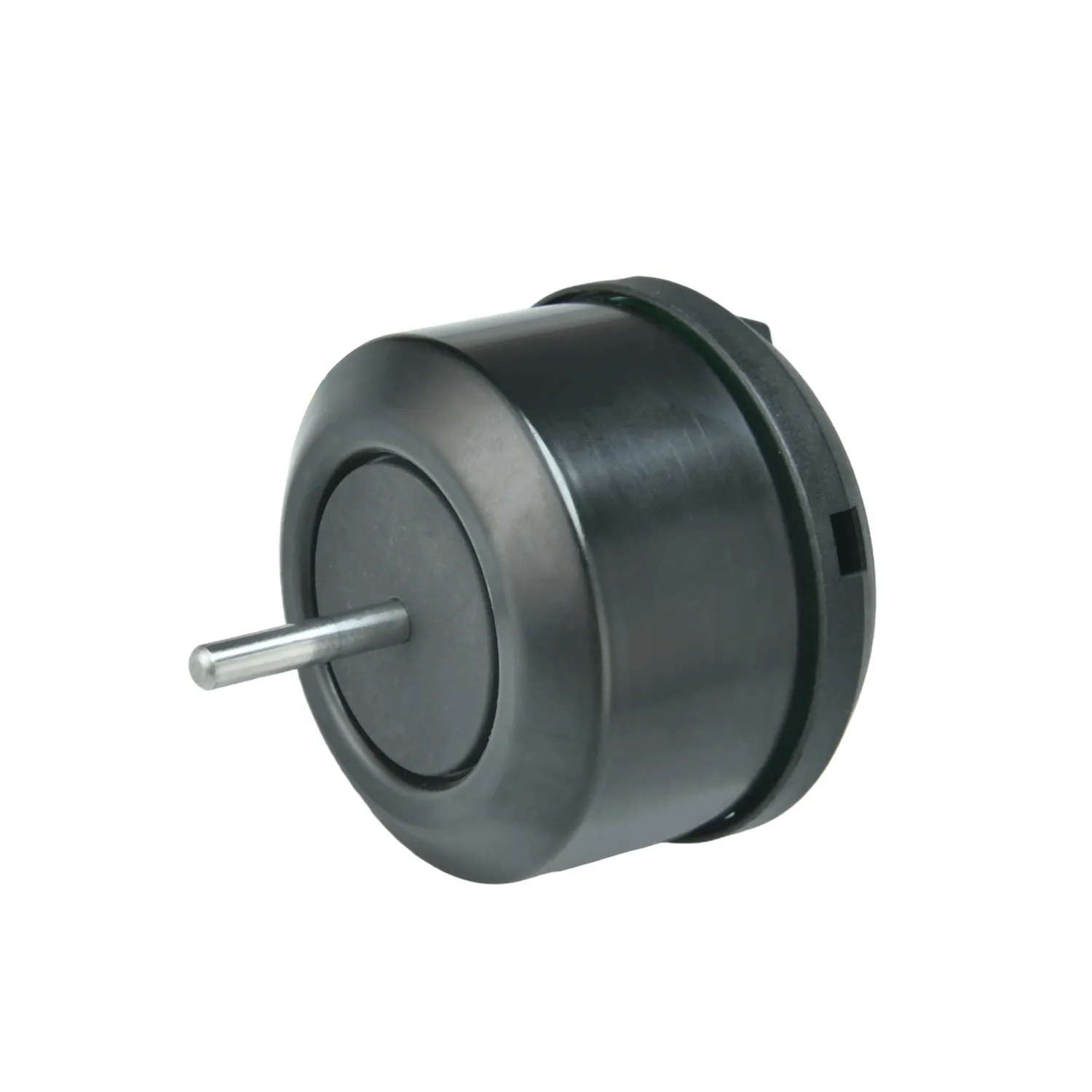

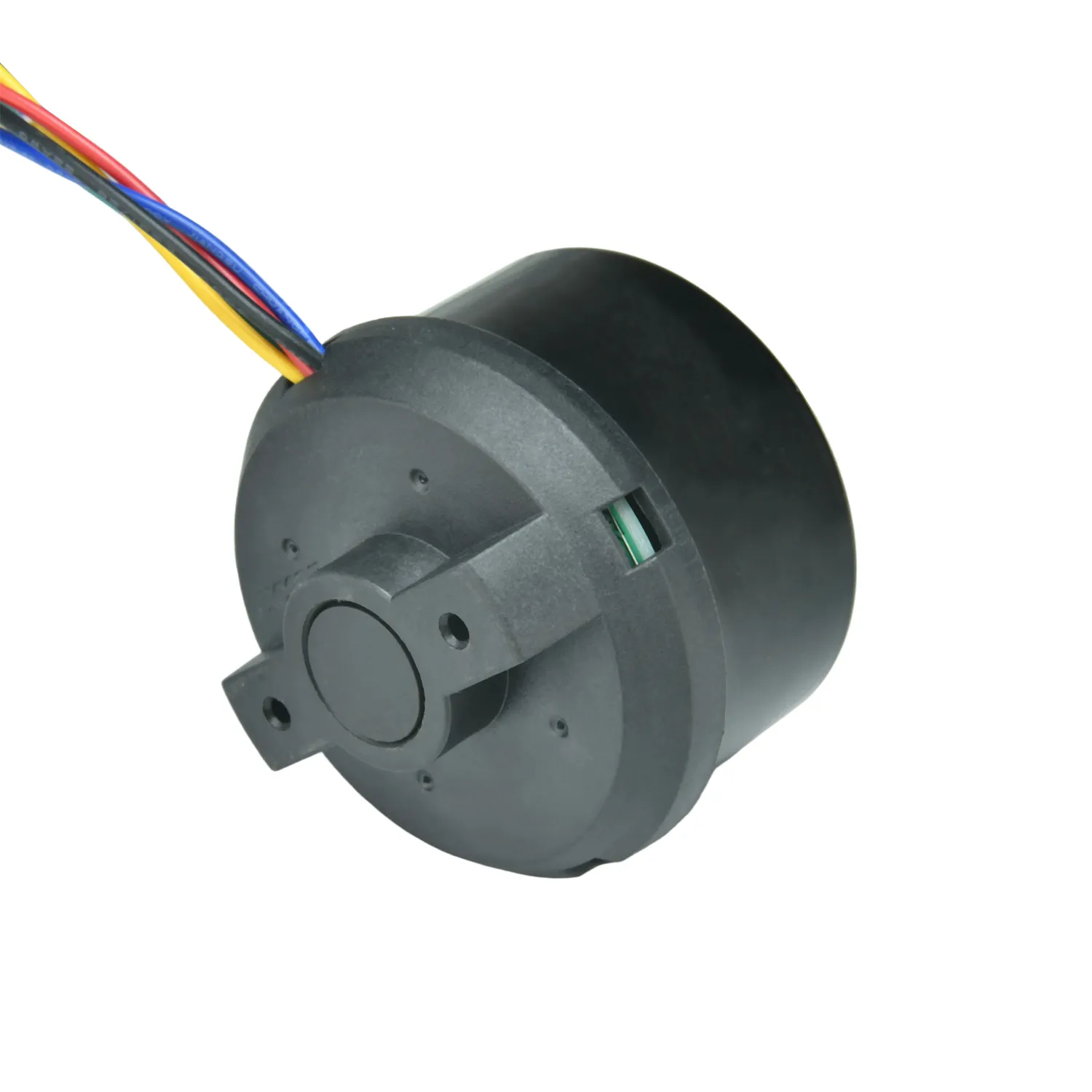

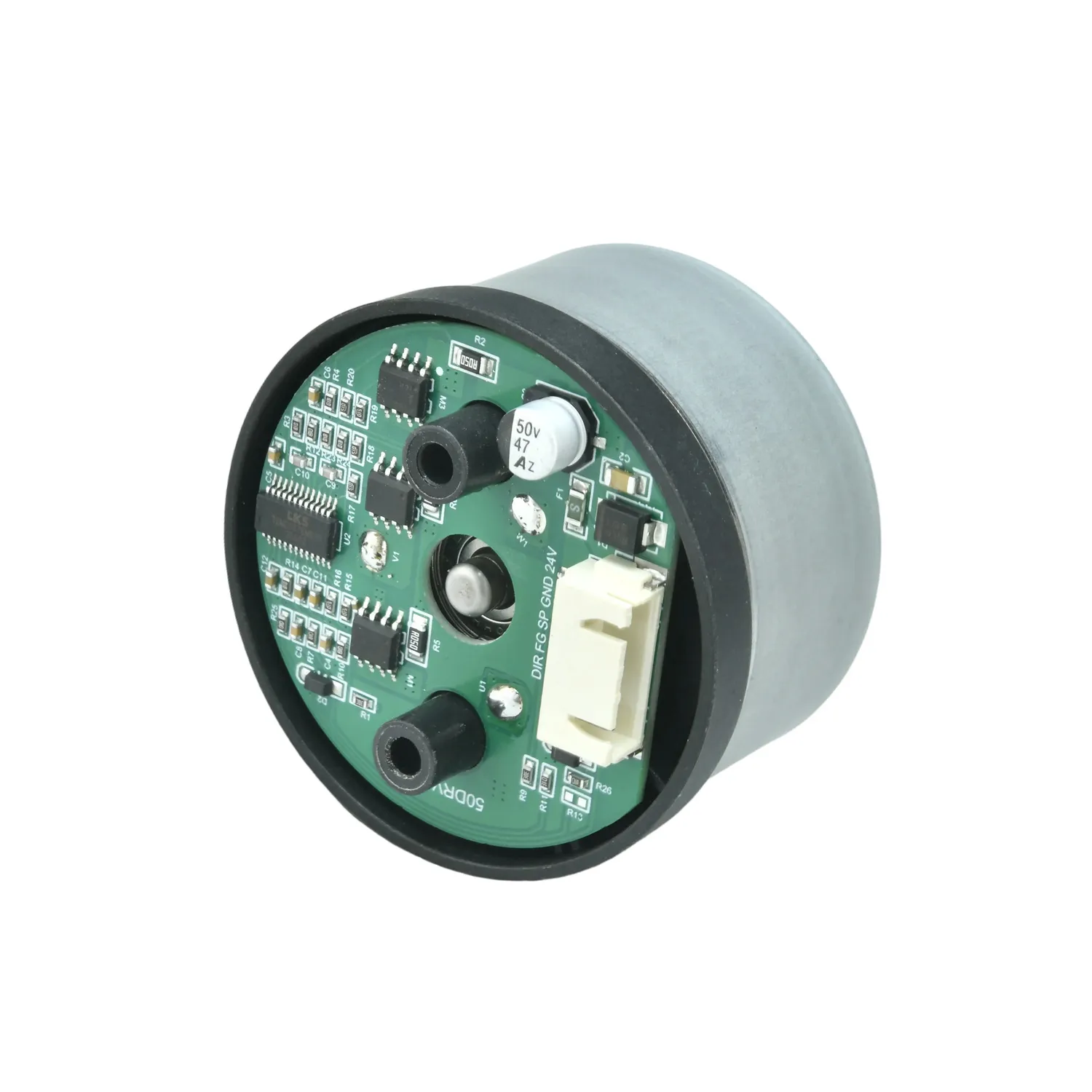

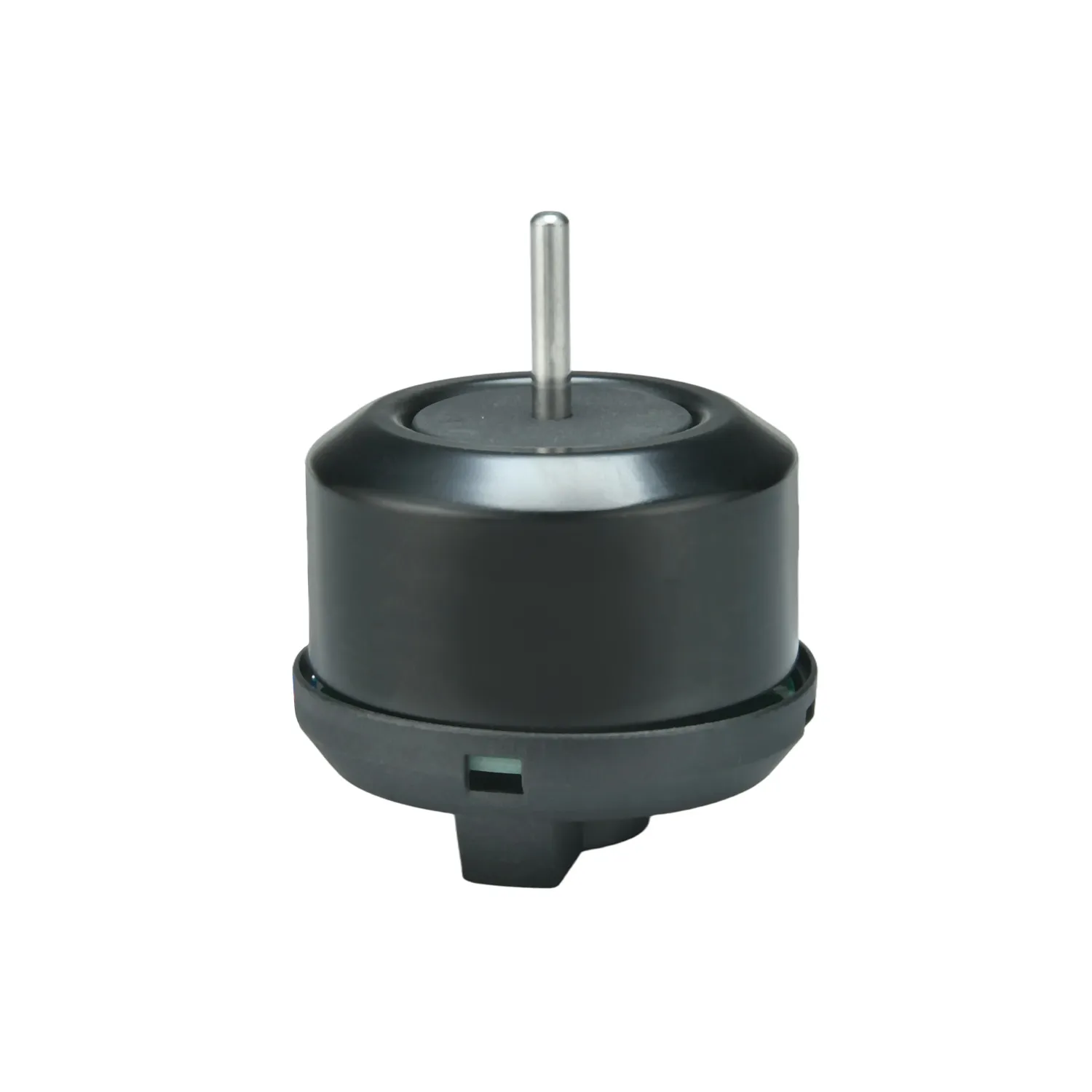

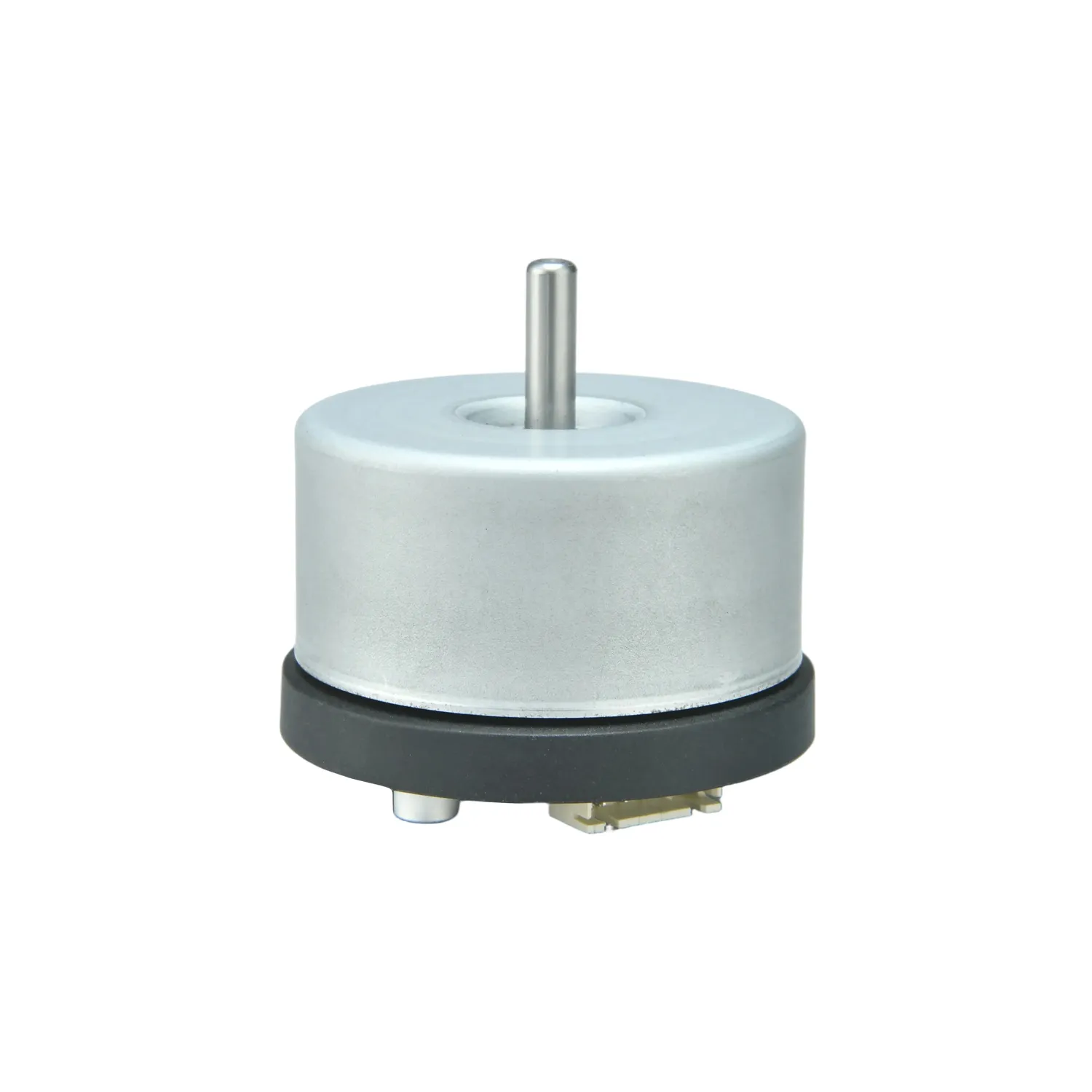

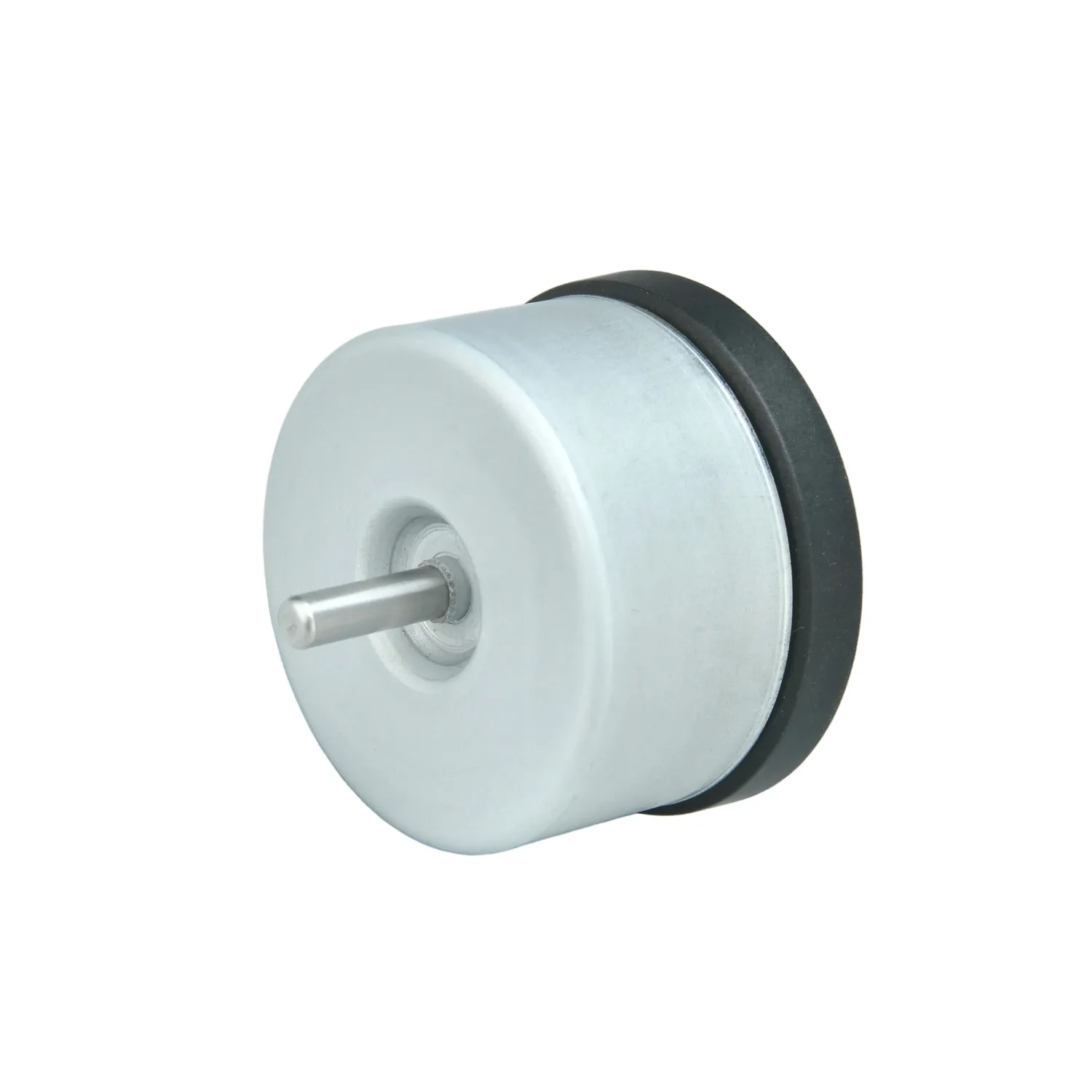

◎ BLDC motor with integrated controller
◎ 0-10vdc/PWM/2 or 3 speeds
◎ 12VDC/24VDC/230VAC input voltage available
◎ Constant speed or constant torque mode available
◎ Electronic protection: over-current, over-load, inverse power connection, etc.
◎ Optional feature: Tacho, reversible rotation direction, shaft extension possible from either end with custom feature on request.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Speed Range(RPM) | Rated Torque(mNm) |
|---|---|---|---|---|---|

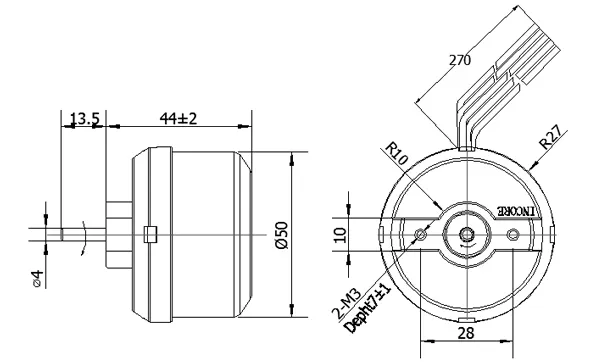

| ECT00050NA023000205 | 12 VDC | 2 | 2300 | 0-2300 | 8.3 |

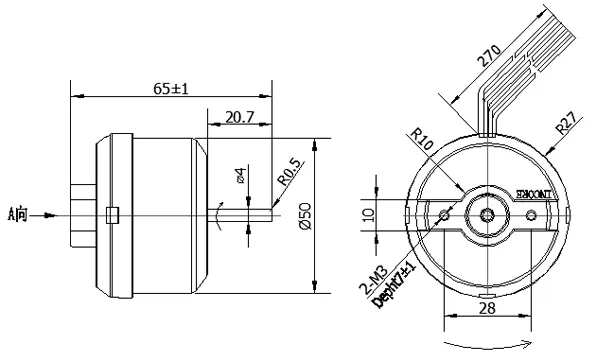

| ECT00050NA023000206 | 24 VDC | 2 | 2300 | 0-2300 | 8.3 |
| ECT00050NA030000506 | 24 VDC | 5 | 3000 | 0-3000 | 16 |
| ECT00050NA035001006 | 24 VDC | 10 | 3500 | 0-3500 | 27 |
| ECT00050NA035001506 | 24 VDC | 15 | 3500 | 0-3500 | 41 |
