High efficiency low nise
Compact design, long-lasting operation
Bathroom fan
Kitchen fan

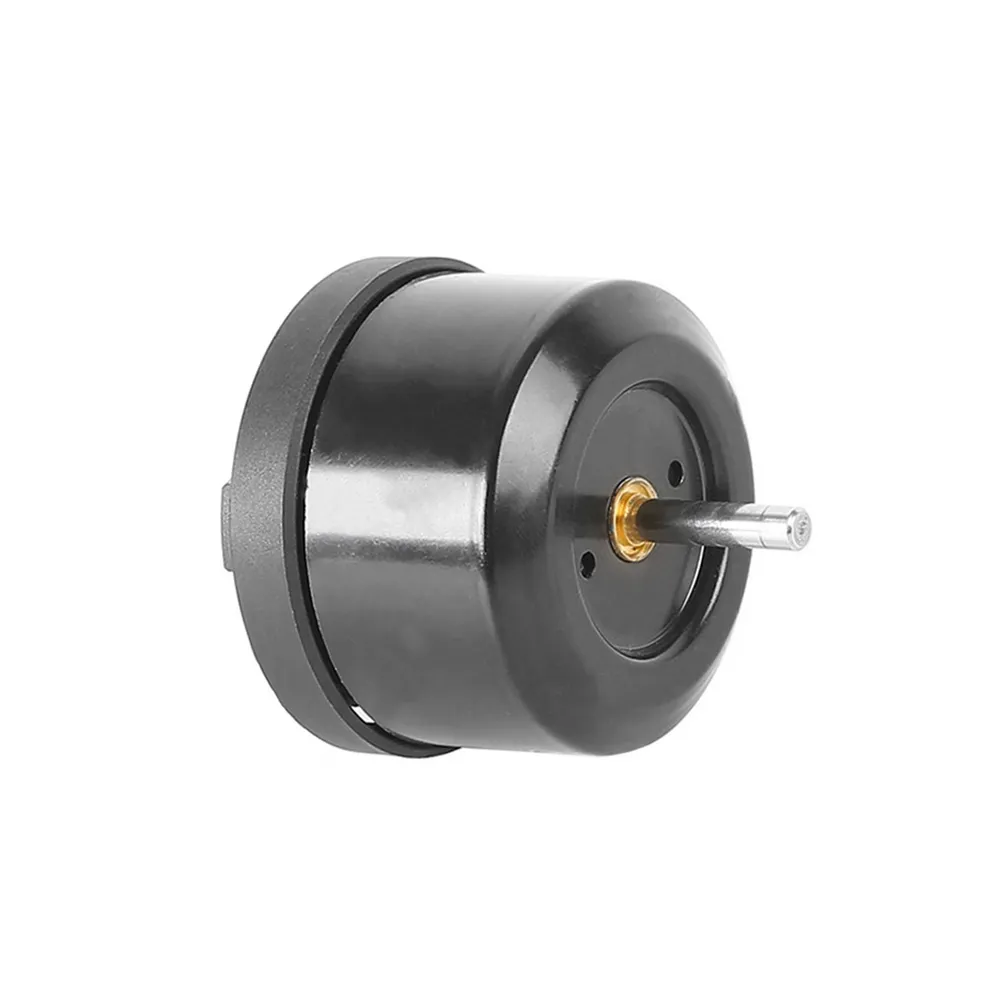

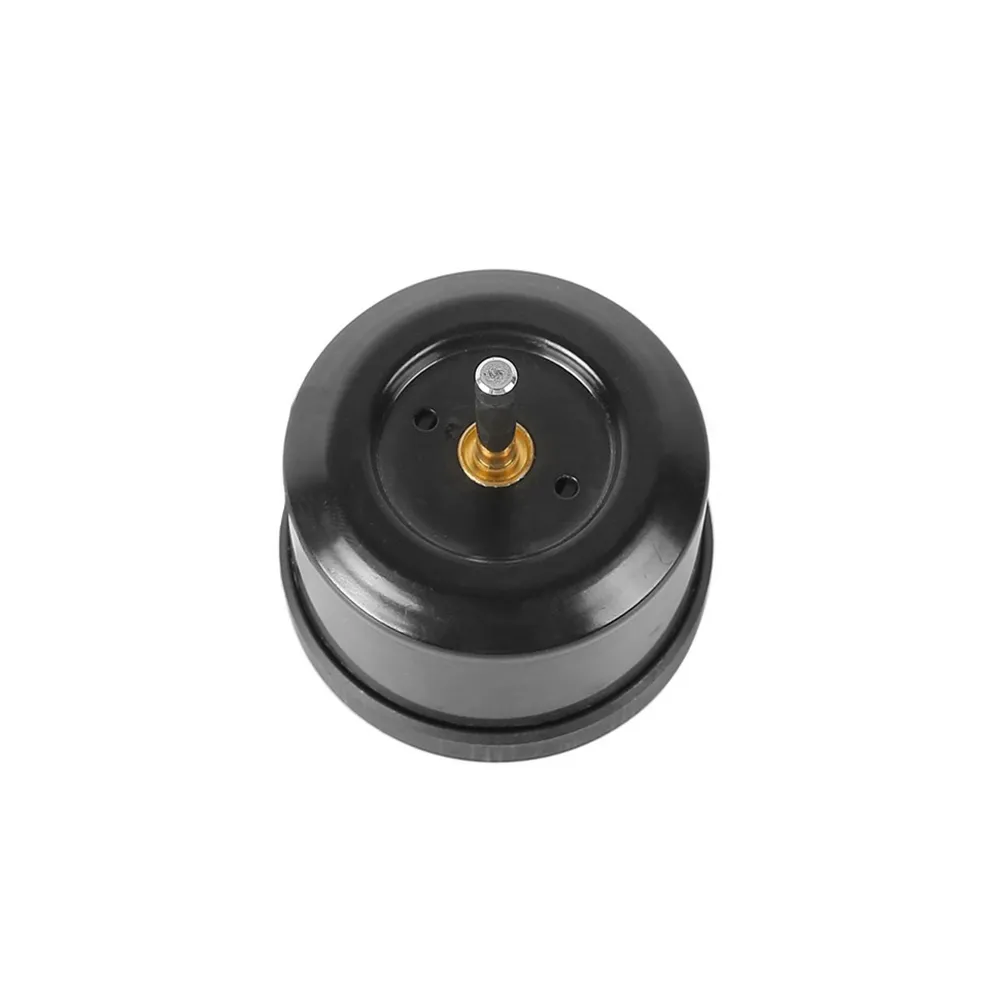

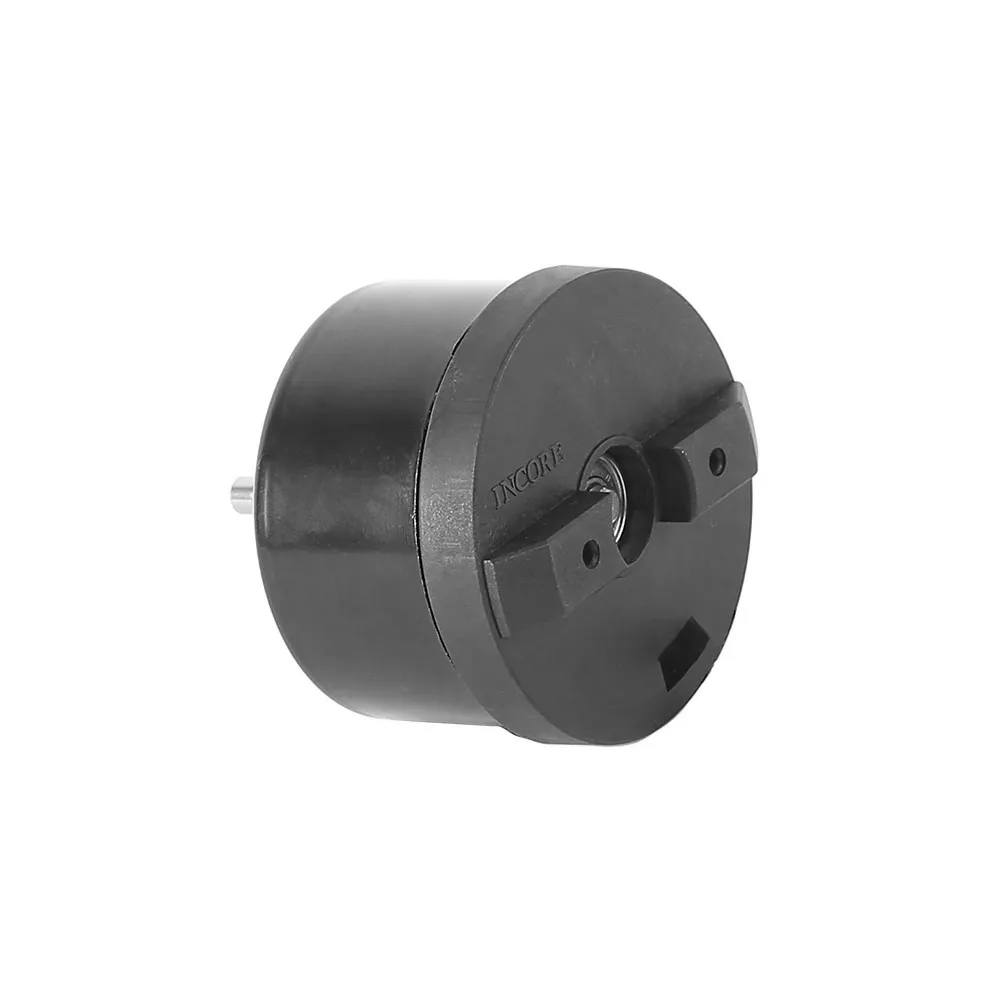

◎ BLDC motor with integrated controller
◎ 0-10vdc/PWM/2 or 3 speeds
◎ 12VDC/24VDC/230VAC input voltage available
◎ Constant speed or constant torque mode available
◎ Electronic protection: over-current, over-load, inverse power connection, etc.
◎ Optional feature: Tacho, reversible rotation direction, shaft extension possible from either end with custom feature on request.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Speed Range(RPM) | Rated Torque(mNm) |
|---|---|---|---|---|---|
| ECT00054NA023000206 | 24 VDC | 2 | 2300 | 0-4000 | 8.3 |

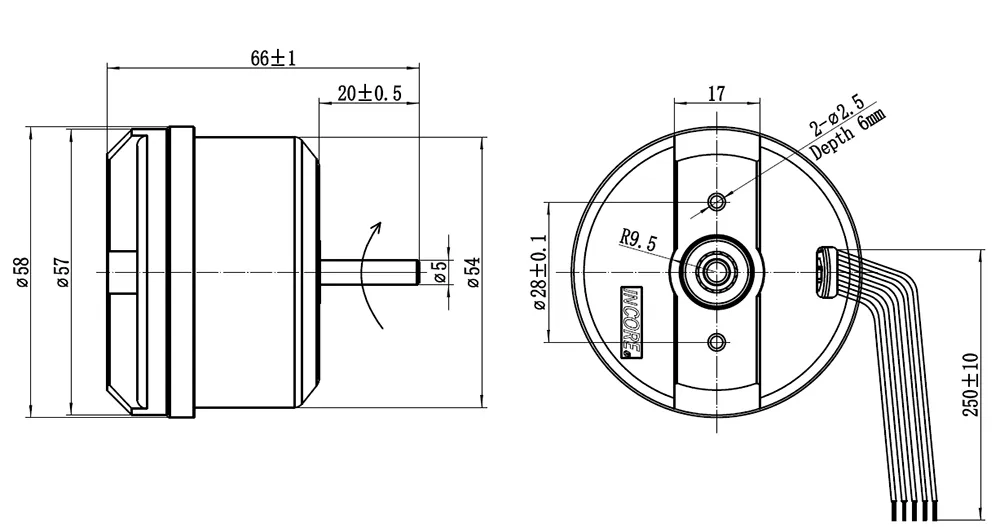

| ECT00054NA027000906 | 24 VDC | 9 | 2700 | 0-4000 | 31.8 |
| ECT00054NA030001506 | 24 VDC | 9 | 3000 | 0-4000 | 47.8 |
