High efficiency, low operation cost
Reliable and long-lasting operation
Fan coil unit, air curtains
Heat recovery unit

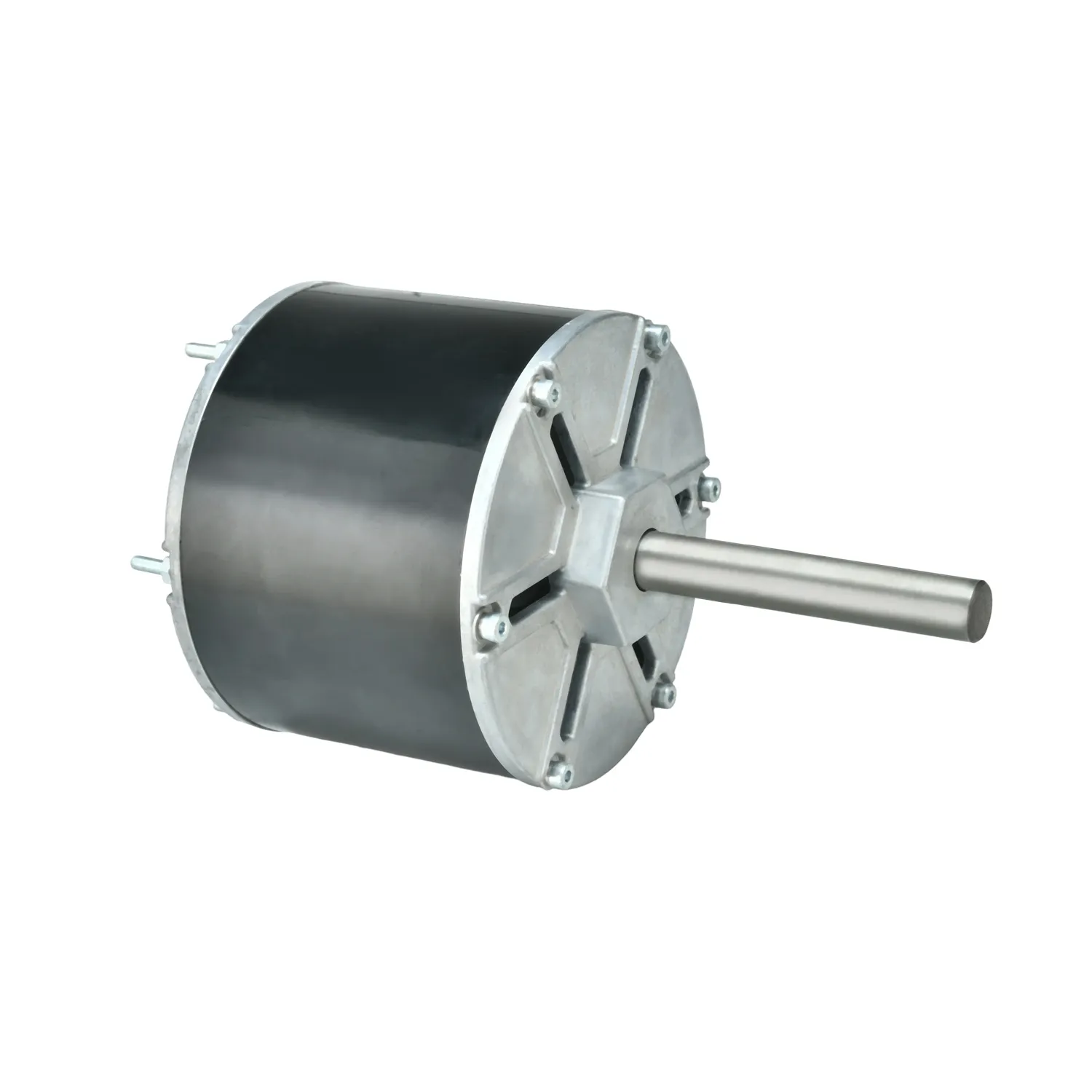

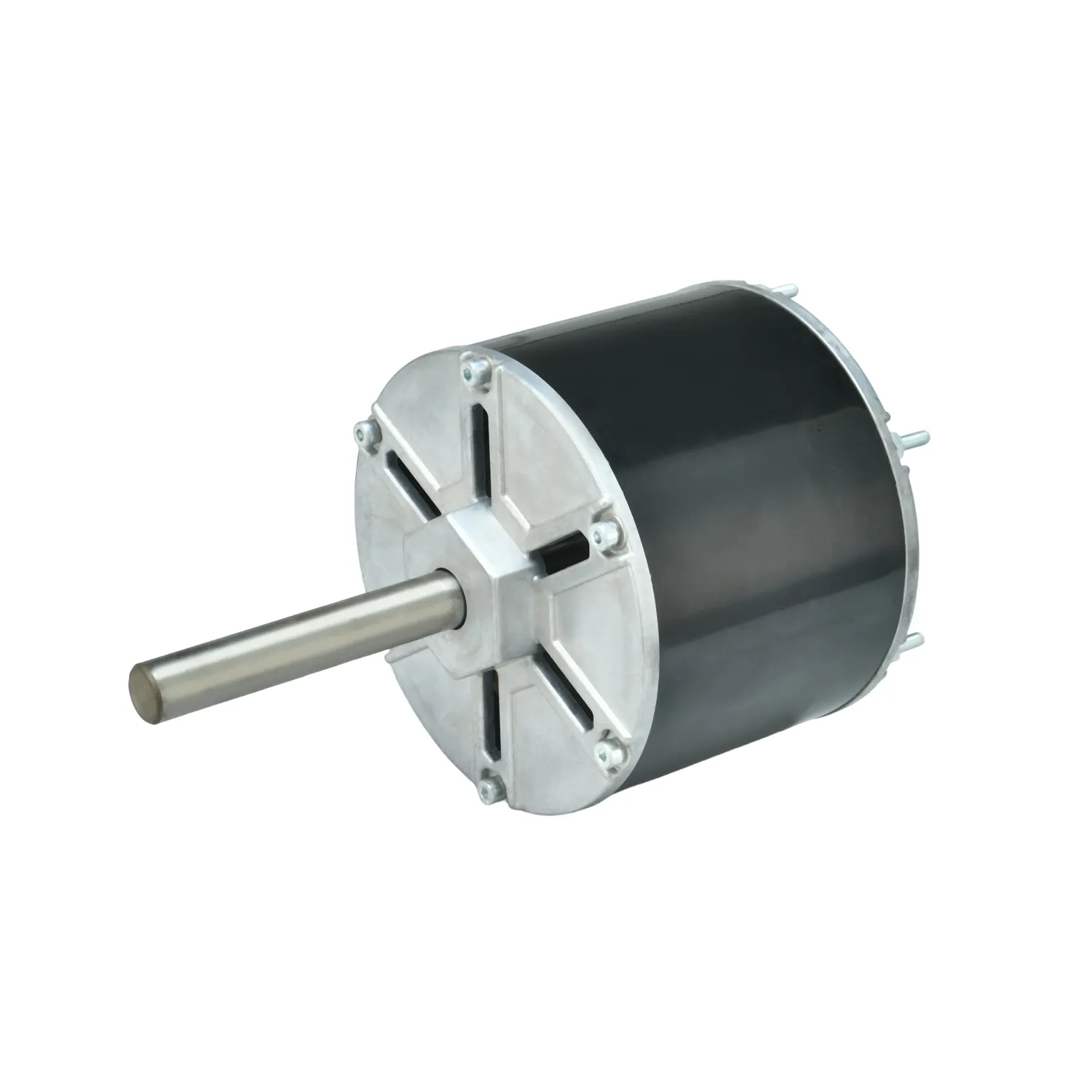

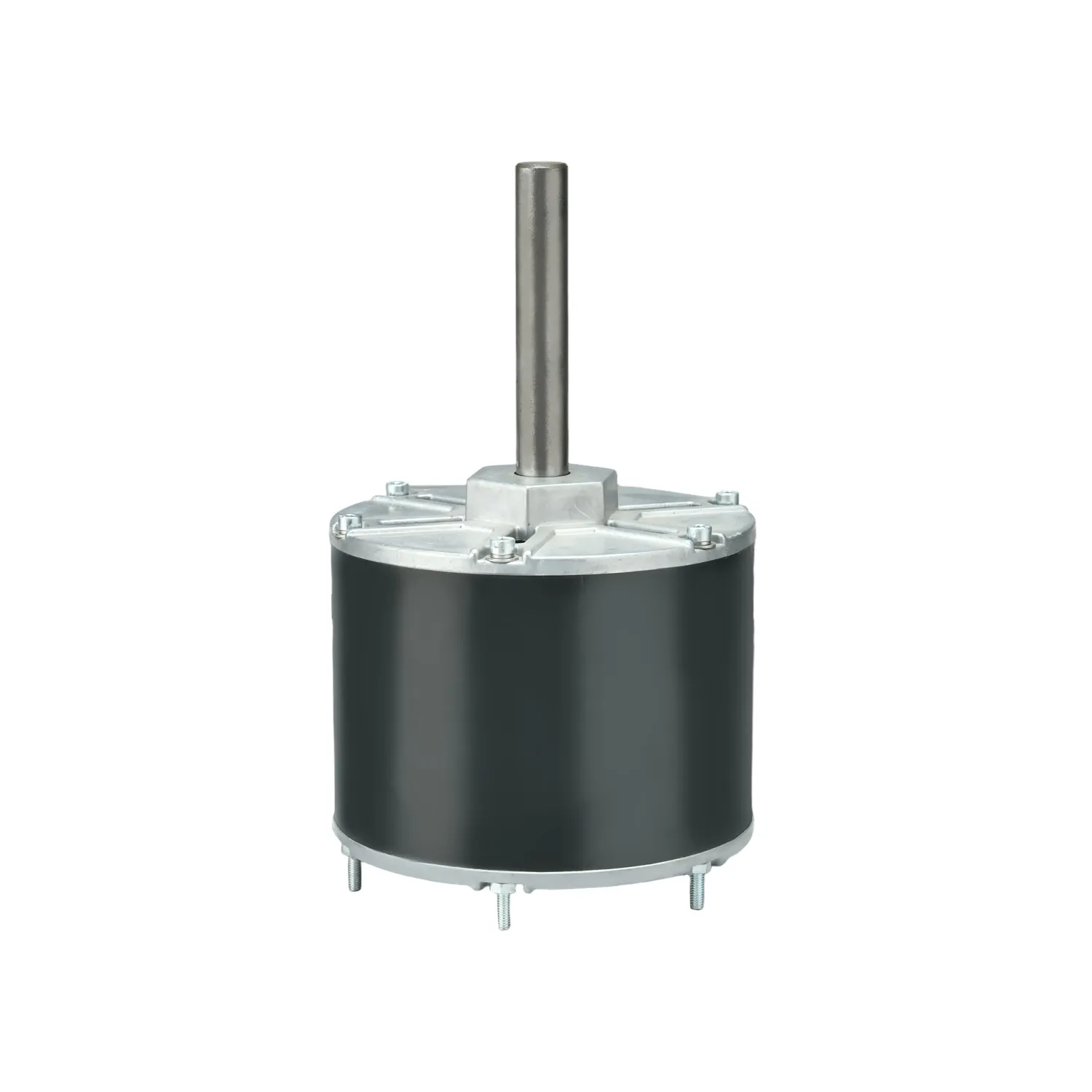

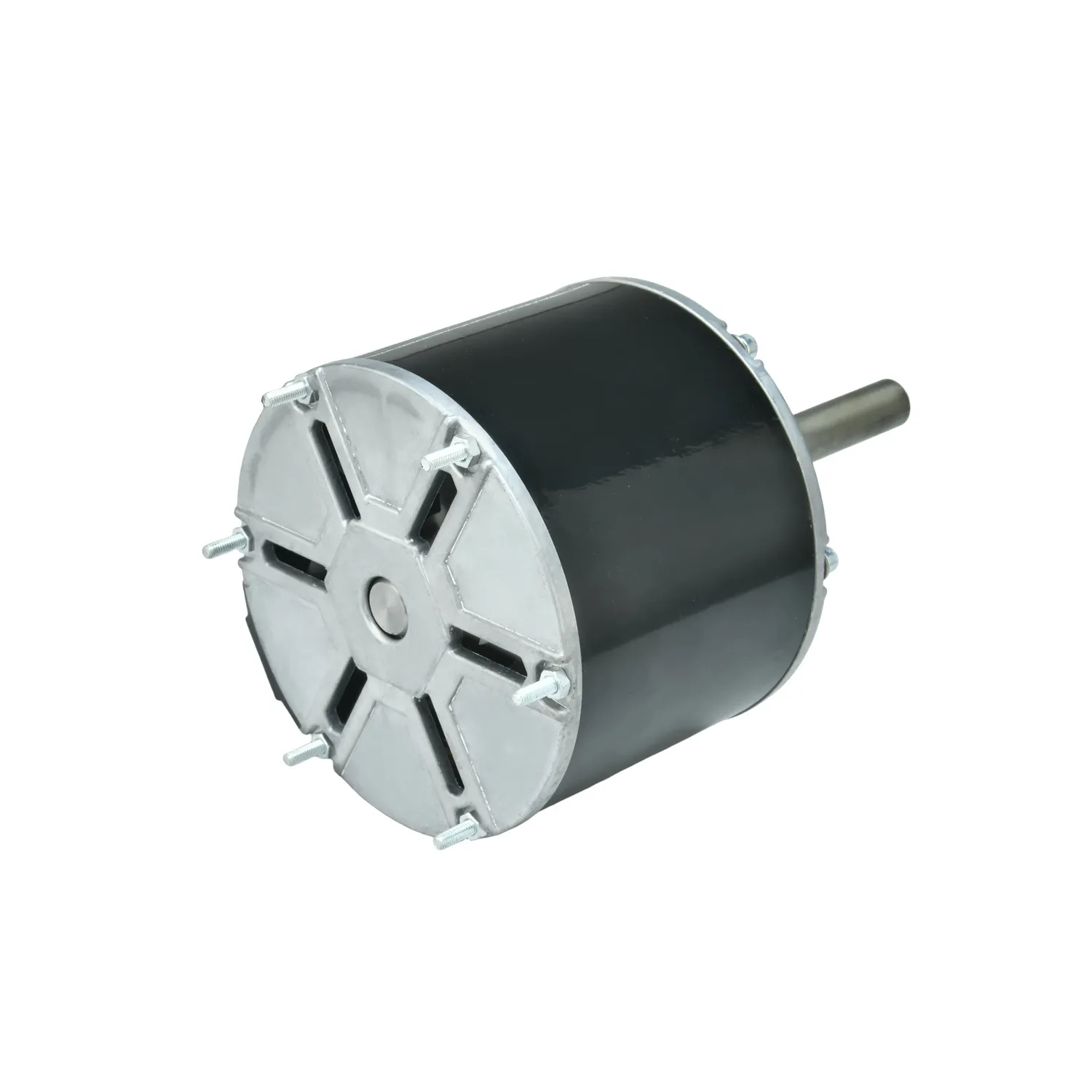

◎ BLDC motor with external controller

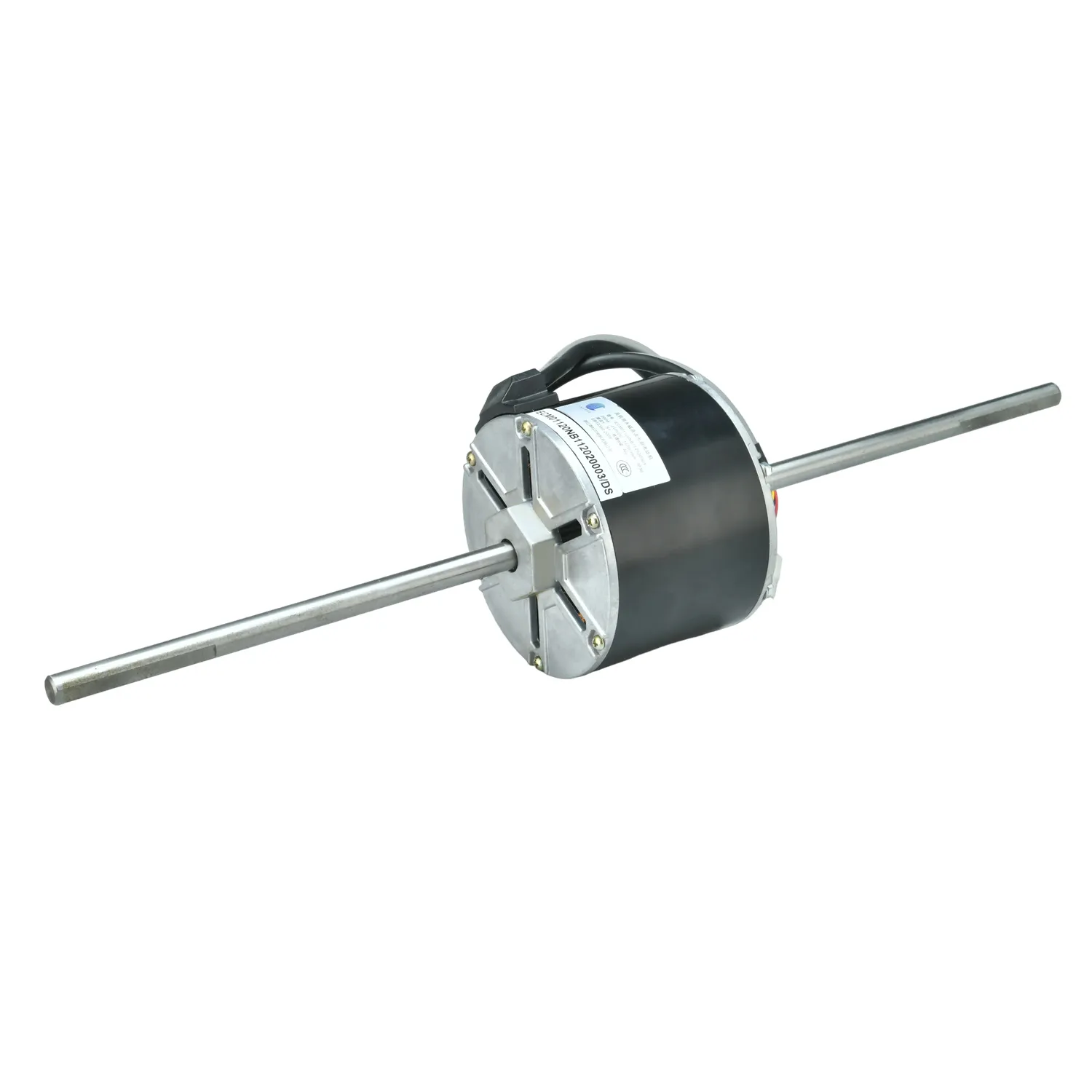

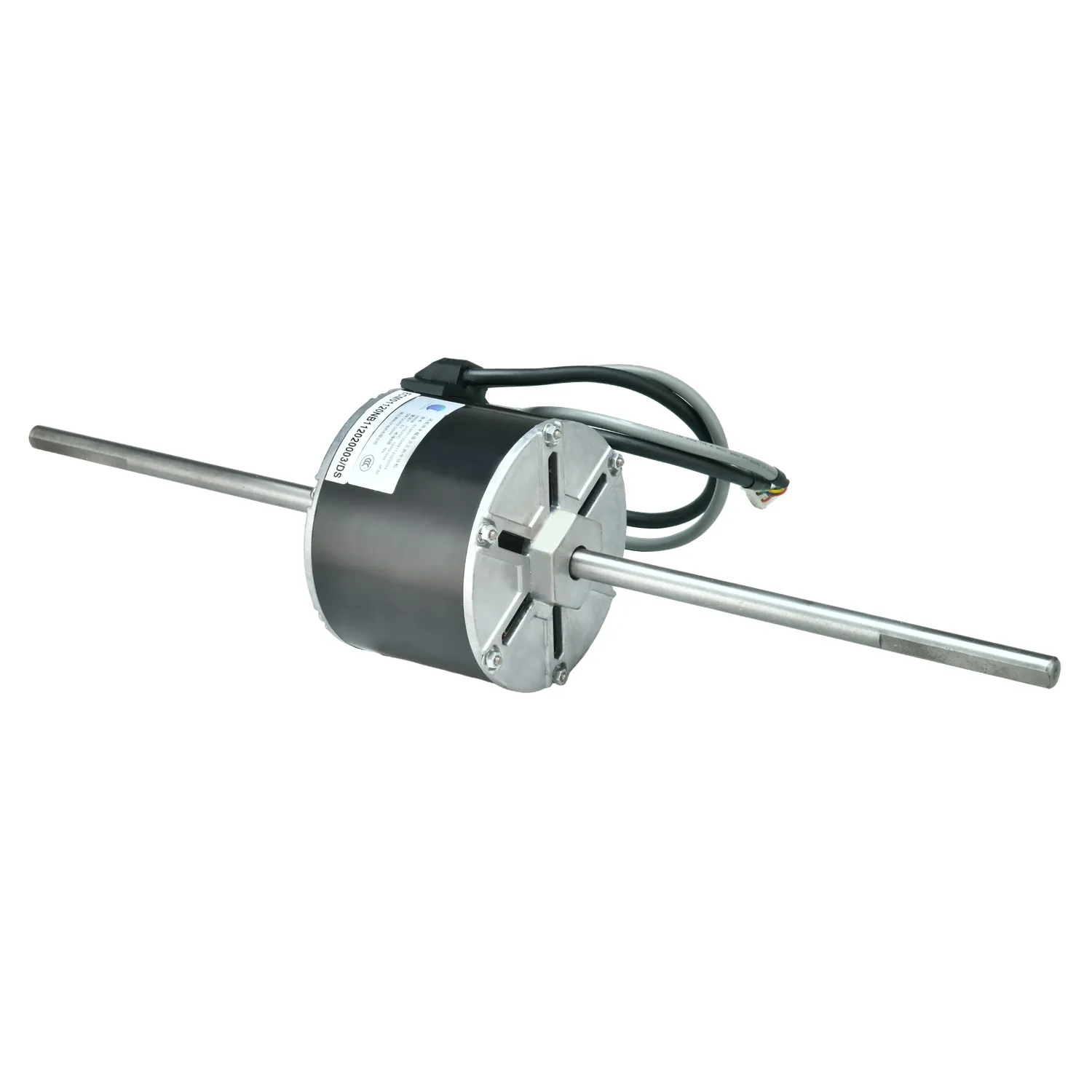

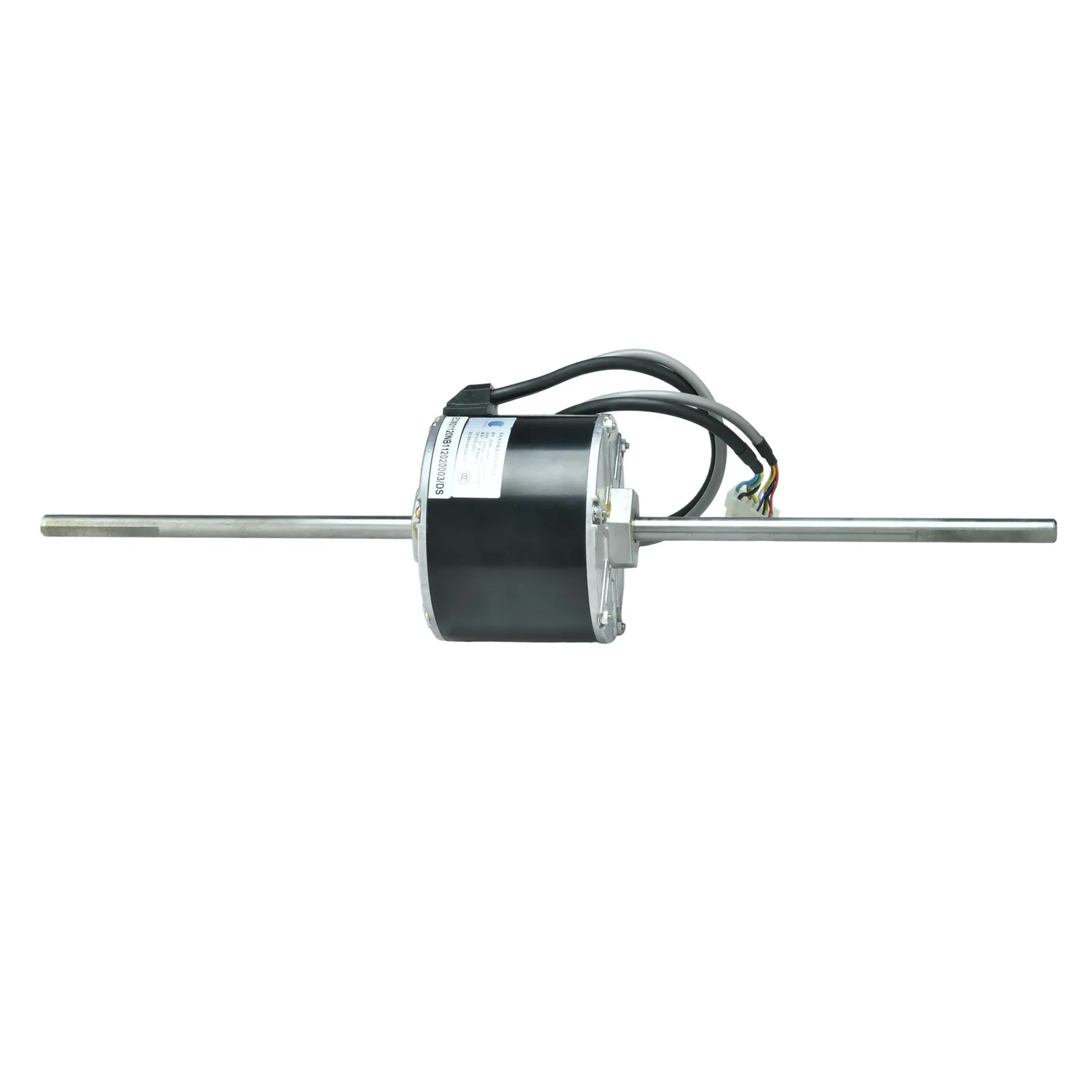

◎ Single or double shaft available
◎ Three speeds/0-10vdc/PWM variable speed
◎ 24VDC/230VAC input voltage available
◎ Constant speed or constant torque mode available
◎ Soft start, electronic protection of over-current, over voltage, over-load, inverse power connection, blocking protection.
◎ Optional feature: Tacho, RS485 communication, reversible rotation direction.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Speed Range(RPM) | Rated Torque(Nm) | Efficiency |
|---|---|---|---|---|---|---|

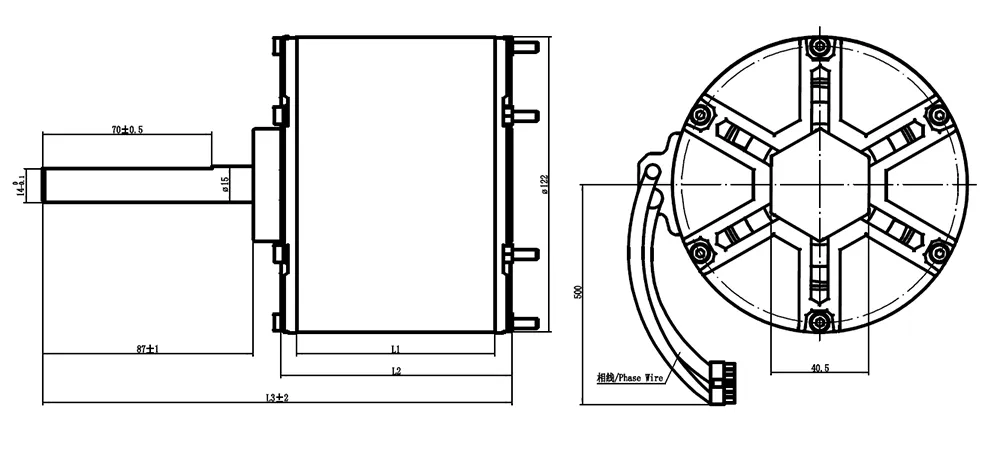

| ECM01120NB112020003 | 230 VAC | 200 | 1200 | 200-1800 | 1.6 | 78% |

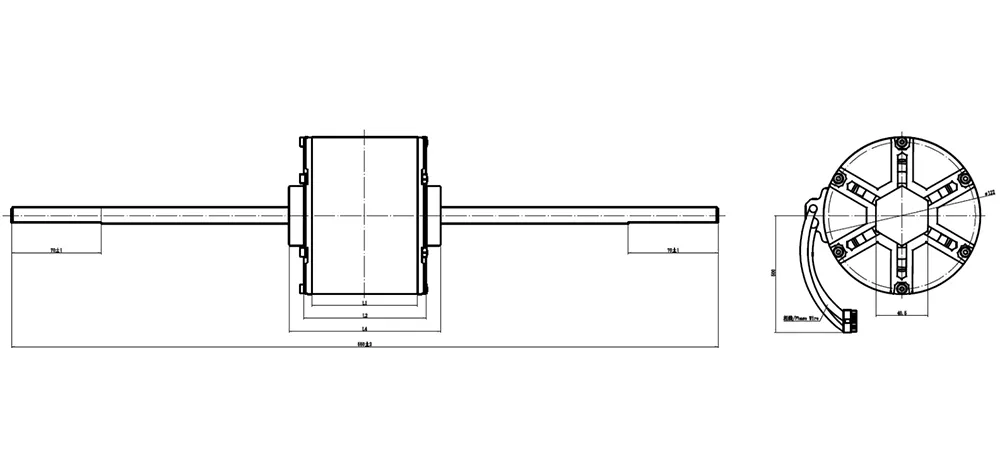

| ECM01120NB112025003 | 230 VAC | 250 | 1200 | 200-1800 | 2.0 | 80% |
| ECM01120NB112032003 | 230 VAC | 320 | 1200 | 200-1800 | 2.5 | 82% |
