High efficiency low nise
Compact design, long-lasting operation
Bathroom fan
Kitchen fan

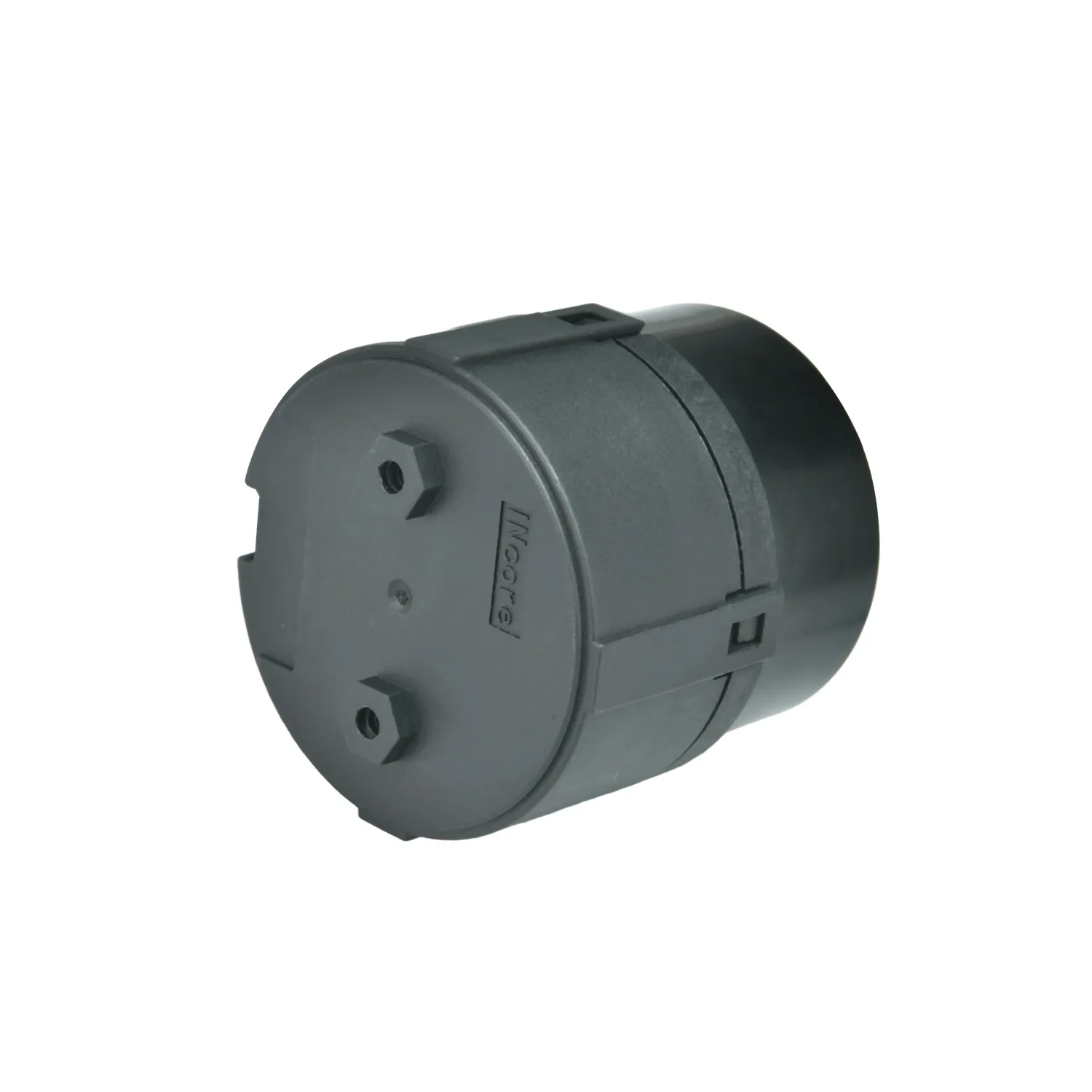

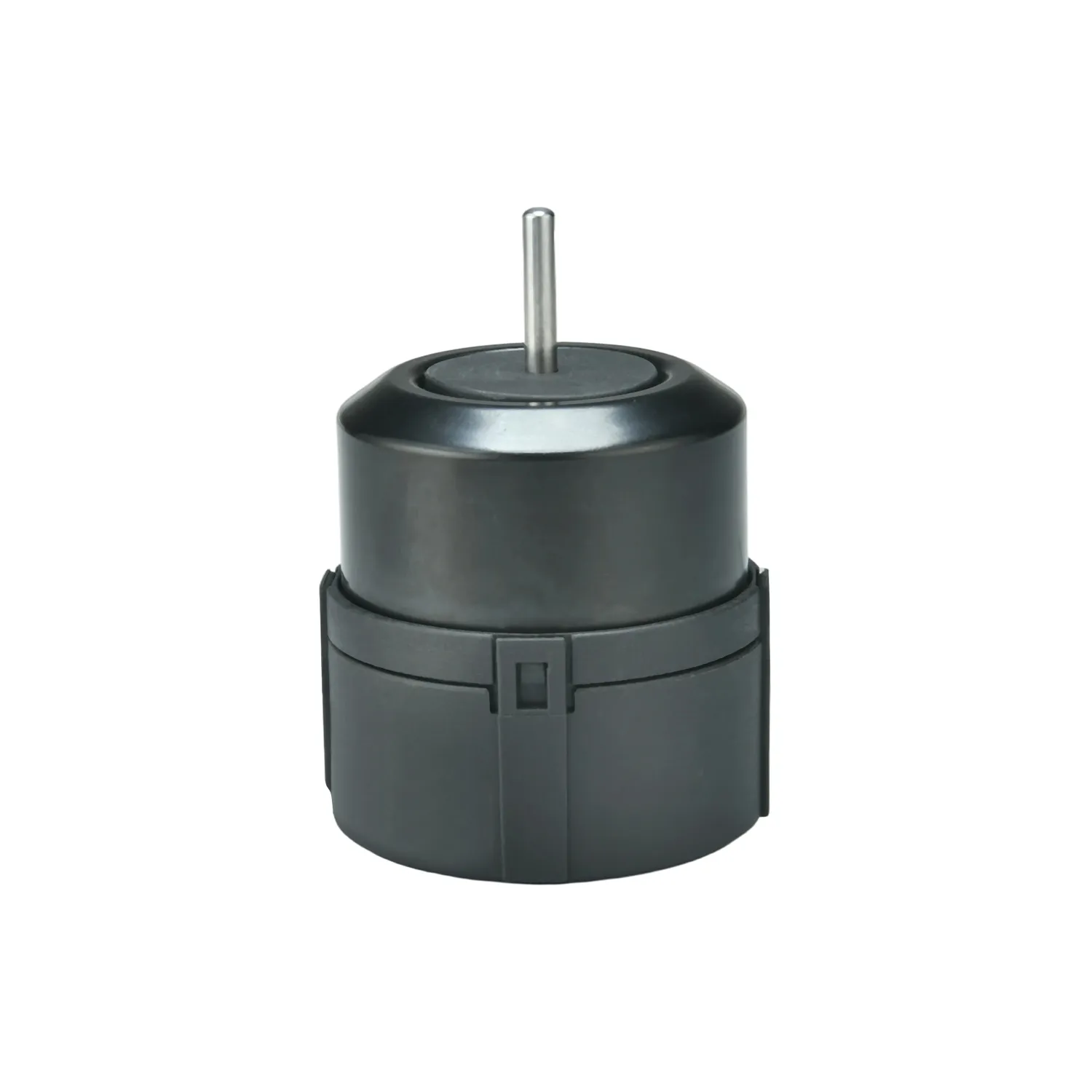

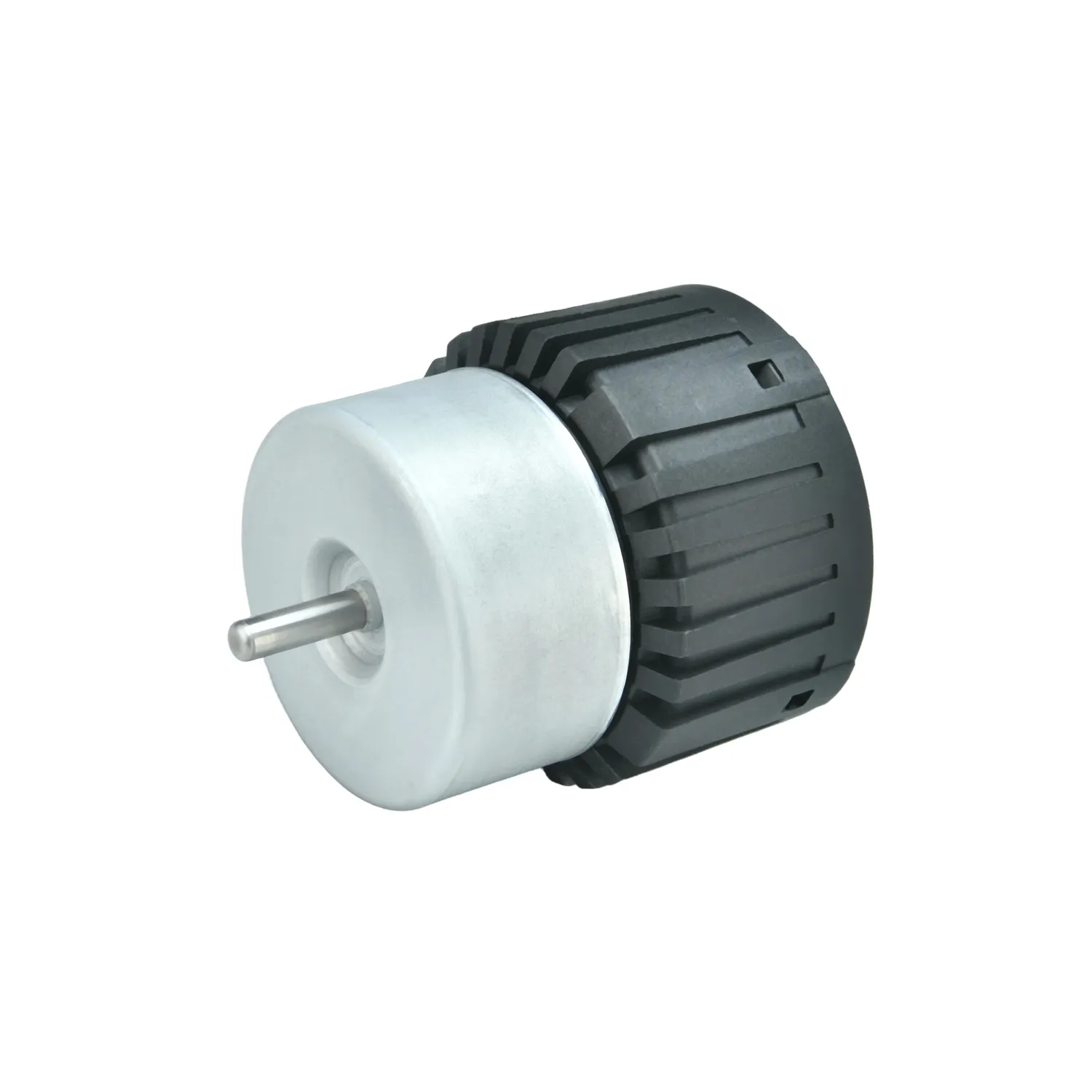

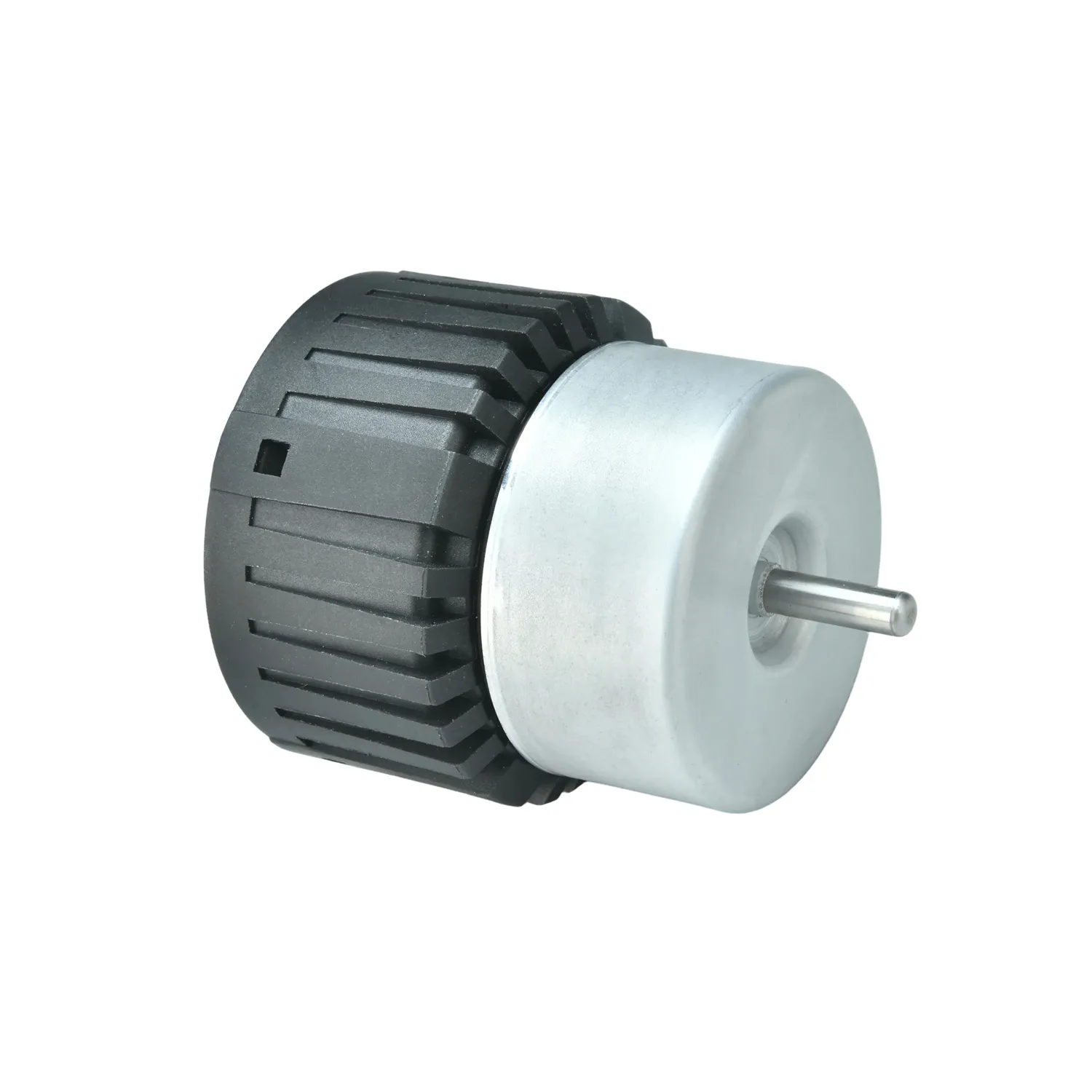

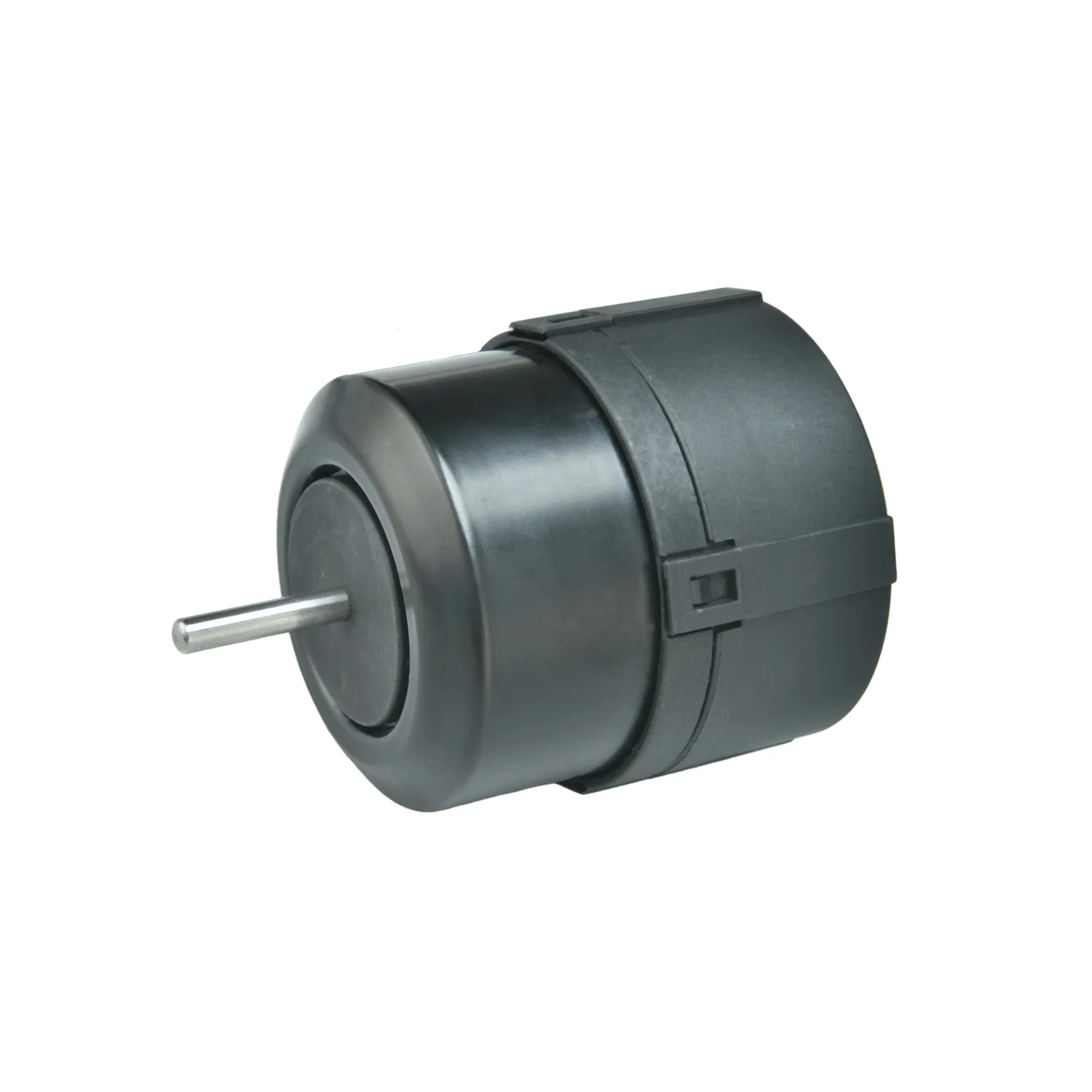

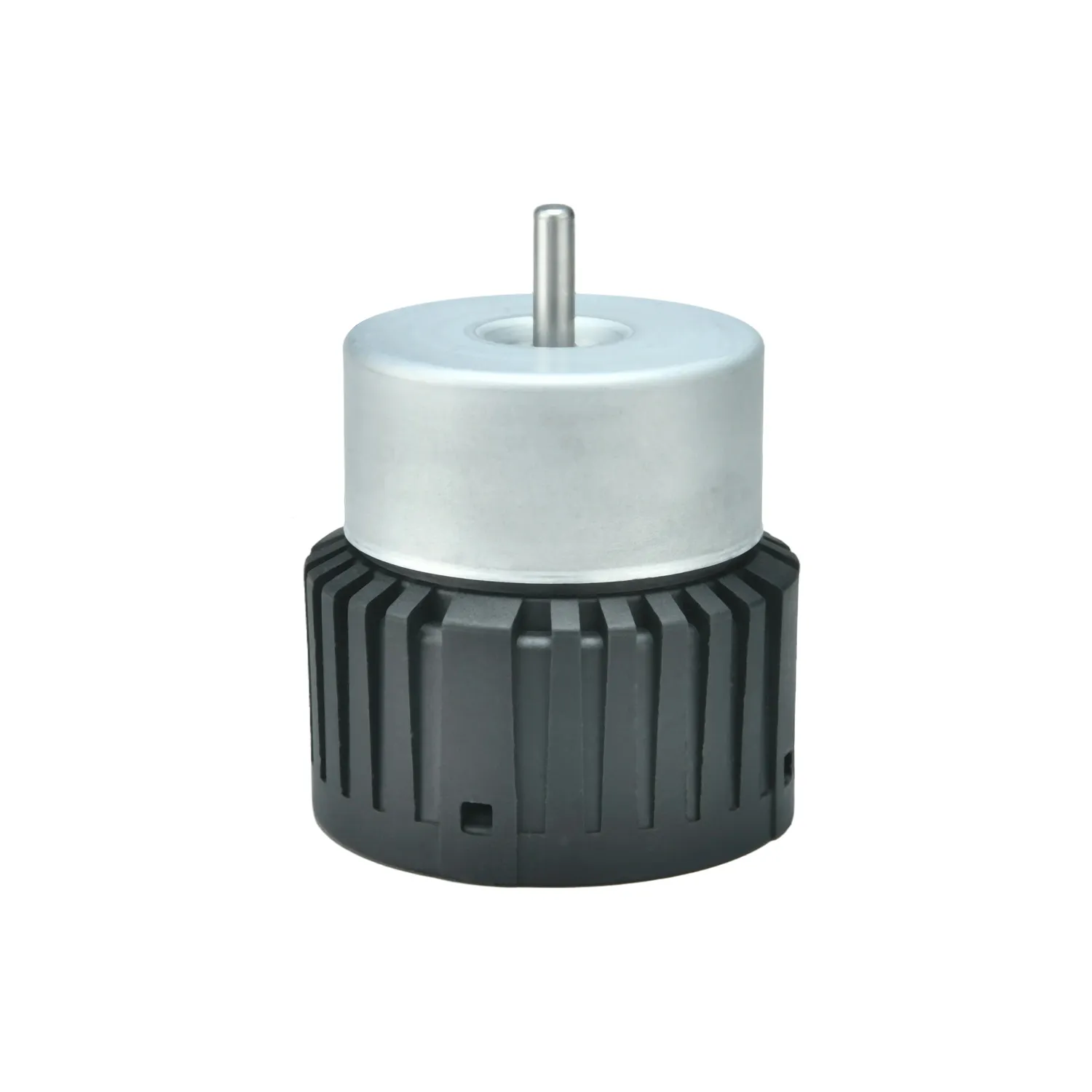

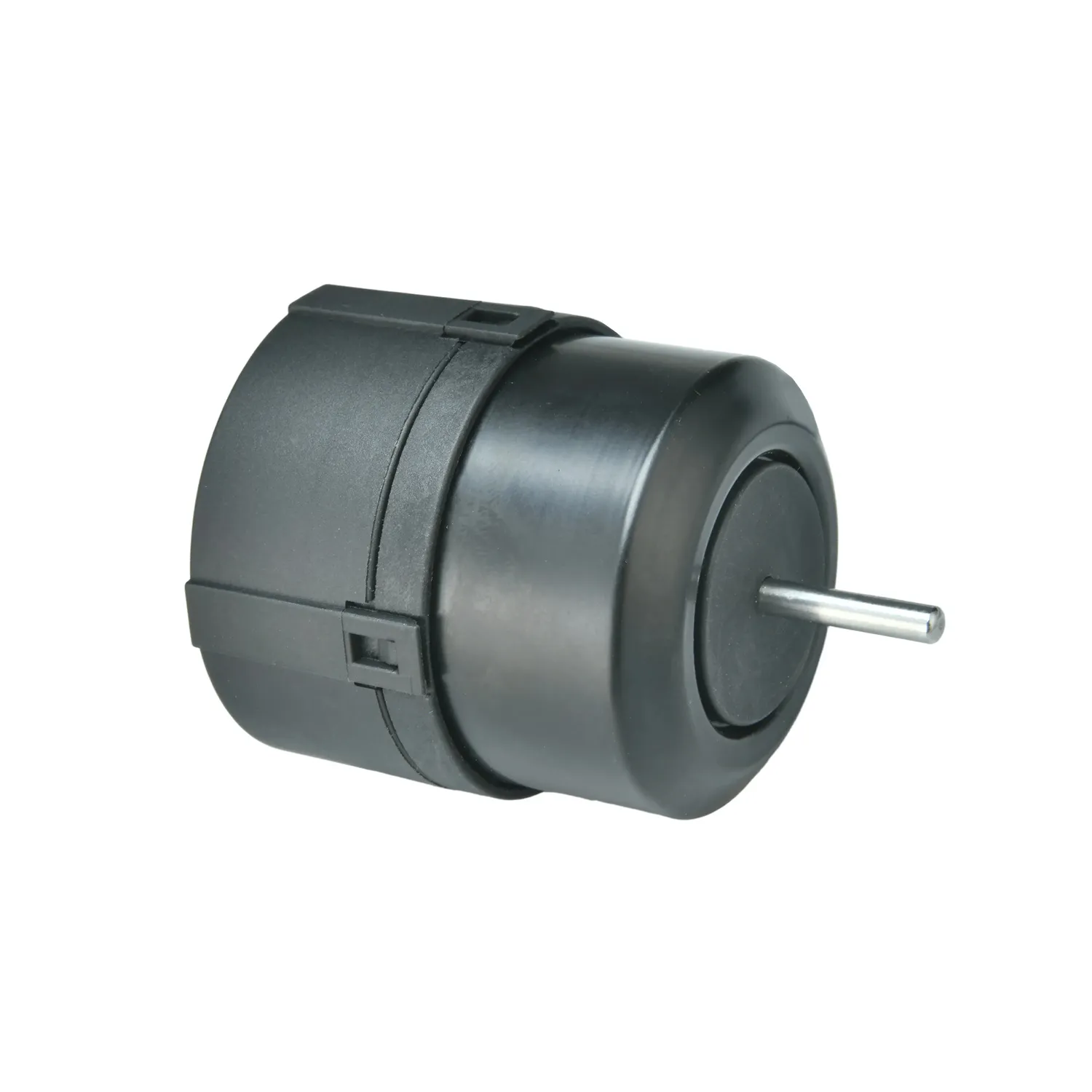

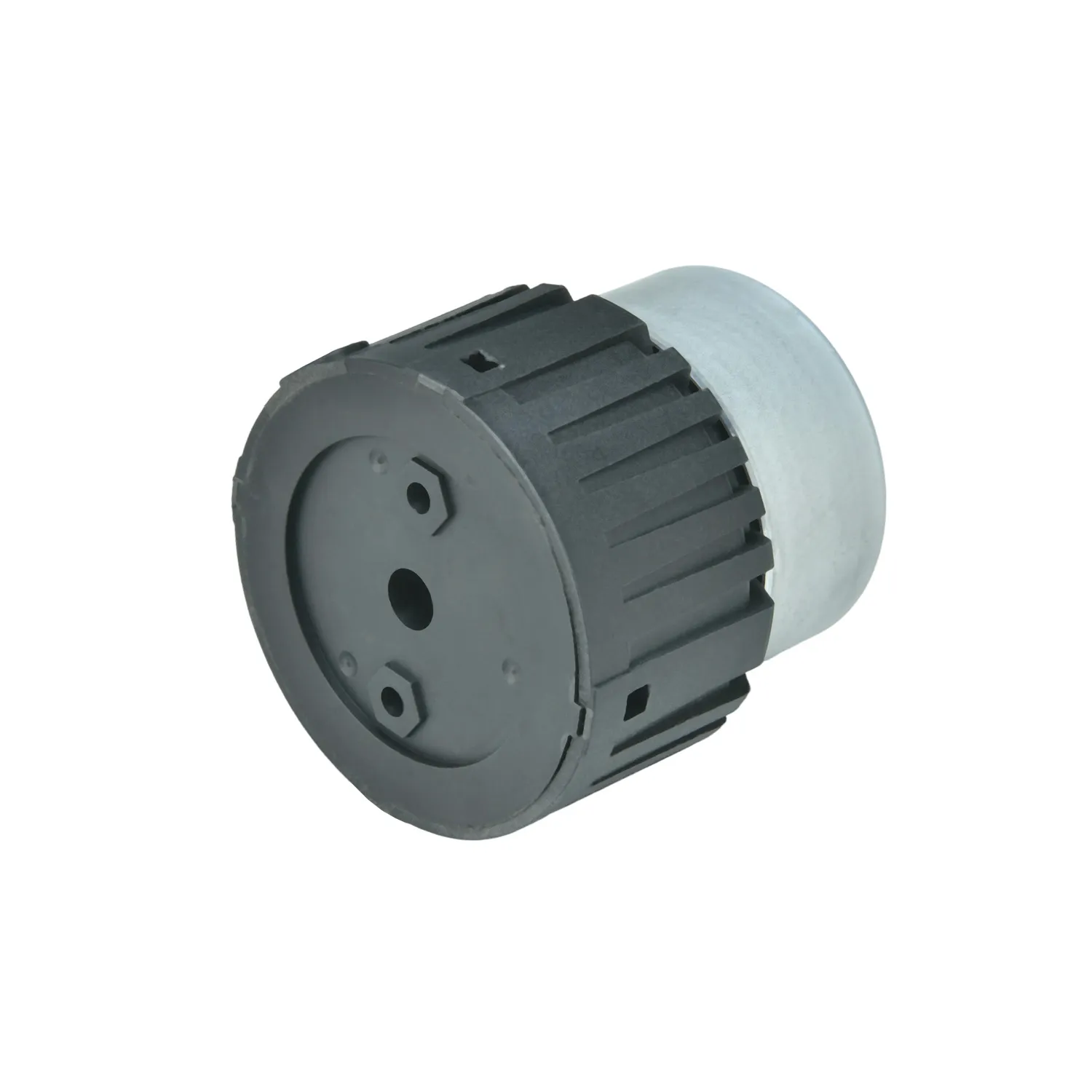

◎ BLDC motor with integrated controller
◎ 0-10vdc/PWM/2 or 3 speeds
◎ 12VDC/24VDC/230VAC input voltage available
◎ Constant speed or constant torque mode available
◎ Electronic protection: over-current, over-load, inverse power connection, etc.
◎ Optional feature: Tacho, reversible rotation direction, shaft extension possible from either end with custom feature on request.
| Model | Input Voltage | Rated Output Power(W) | Rated Speed(RPM) | Speed Range(RPM) | Rated Torque(mNm) |
|---|---|---|---|---|---|

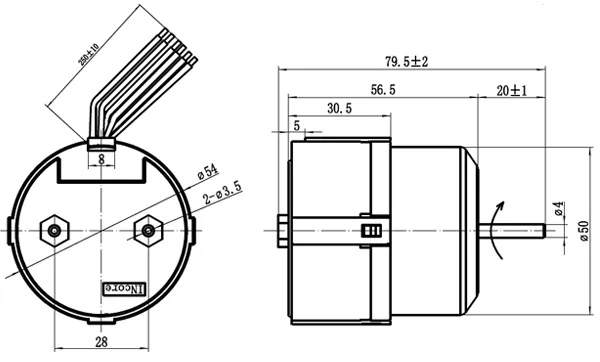

| ECM00050NA021000203 | 230 VAC | 2 | 2100 | 0-3000 | 9 |

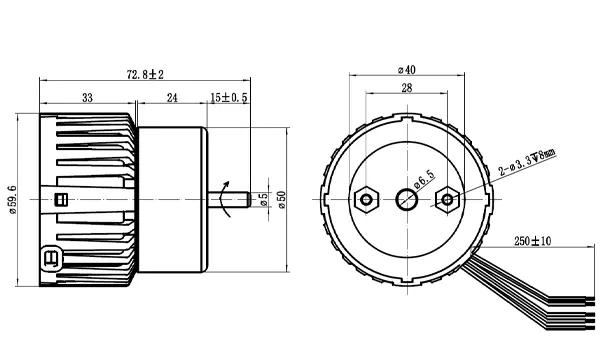

| ECM00050NA030000503 | 230 VAC | 5 | 3000 | 0-3000 | 16 |
